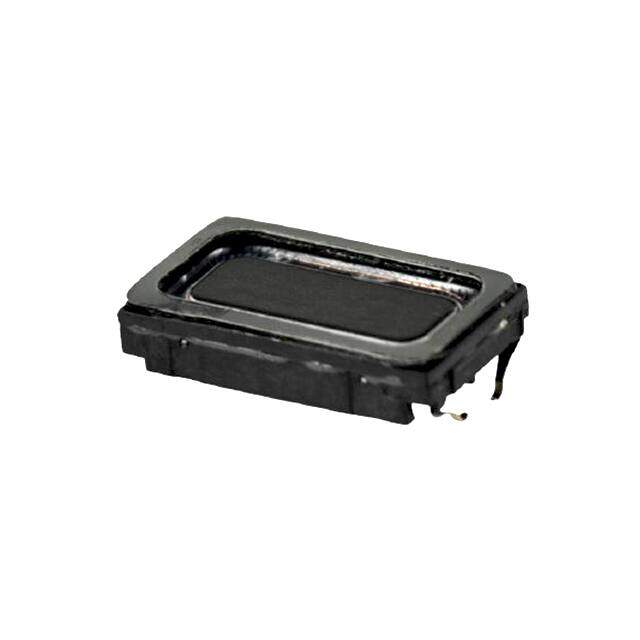

CMS-160916-30-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 6OHM 700MW ENCLOSED
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.4112
≥1 USD $2.4112
≥10 USD $1.9976
≥100 USD $1.896576
Inventory: 1052
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2017
Series CMS
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Spring Type
Type General Purpose
Technology Magnetic
Impedance 6Ohm
Frequency - Self Resonant 600Hz
Power - Max 1W
Frequency Range 480Hz~20kHz
Power - Rated 800mW
Port Location Top
Efficiency - dBA 88.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 800mW/100mm
Dimensions
Height Seated (Max) 0.138 3.50mm
Compliance
RoHS Status RoHS Compliant
