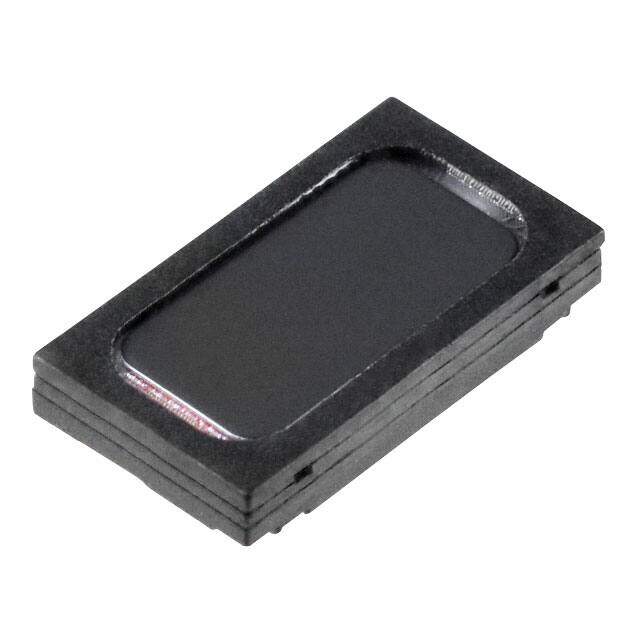

CMS-160903-16SP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 16 X 9MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.3728
≥1 USD $1.3728
≥10 USD $1.14224
≥100 USD $1.055296
≥500 USD $0.992464
≥1000 USD $0.931744
≥3000 USD $0.863306
Inventory: 169
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Distortion Rating 10% Max @ 1KHz, 0.1M, 0.94W
Efficiency - Testing 940mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 91.00
Port Location Top
Power - Rated 940mW
Frequency Range 500Hz~10kHz
Power - Max 1.2W
Frequency - Self Resonant 850Hz
Impedance 6Ohm
Technology Magnetic
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Series CMS
Operating Temperature -20°C~60°C
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyetheretherketone (PEEK)
Shape Rectangular
Supply Chain
Factory Lead Time 5 Weeks
