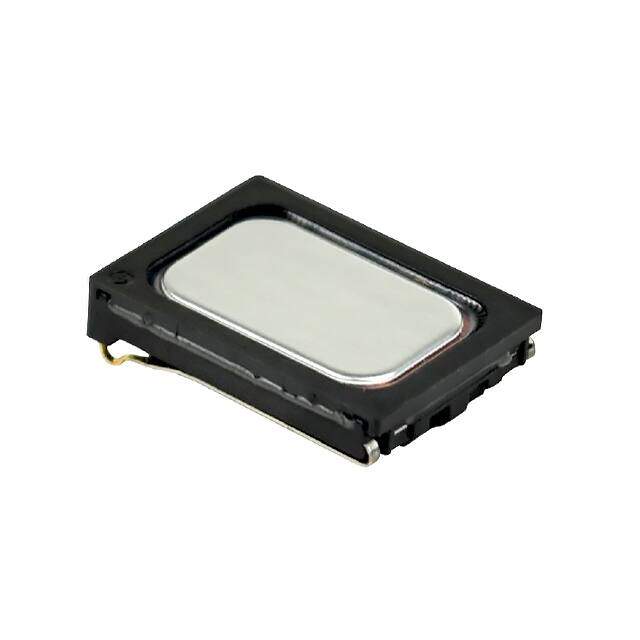

CMS-15116-30-SP
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 6OHM 940MW TOP PORT 94DB
PDF
/
Buying Options
Total Price: USD $4.08
Unit Price: USD $4.084432
≥1 USD $4.084432
≥200 USD $1.630622
≥500 USD $1.57548
≥1000 USD $1.549222
Inventory: 2101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2016
Series CMS
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Impedance 6Ohm
Frequency - Self Resonant 500Hz
Power - Max 1.3W
Frequency Range 400Hz~20kHz
Power - Rated 940mW
Port Location Top
Efficiency - dBA 94.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 940mW/100mm
Dimensions
Height Seated (Max) 0.130 3.30mm
Compliance
RoHS Status Non-RoHS Compliant
