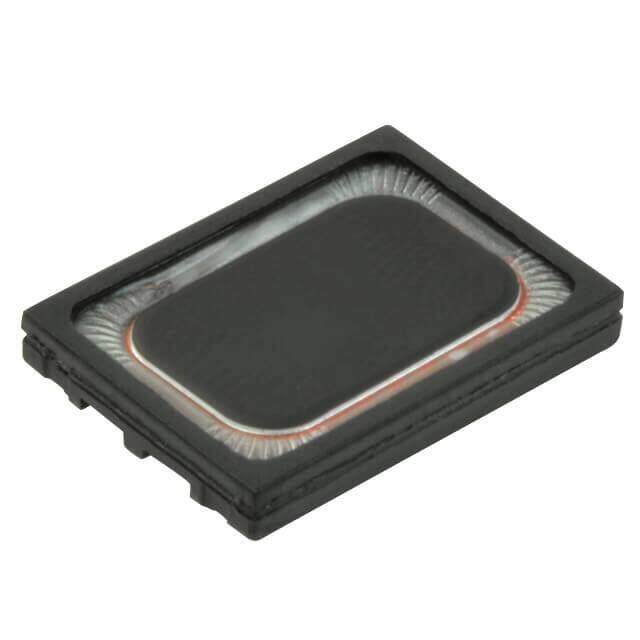

CMS-15113-078SP-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
Magnetic General Purpose Solder Pads Polyester Polyethylene Terephthalate (PET) Speaker General Purpose 700Hz 100Hz~20kHz 8Ohm 1W
PDF
/
Buying Options
Total Price: USD $1.67
Unit Price: USD $1.672
≥1 USD $1.672
≥10 USD $1.38688
≥100 USD $1.28128
≥500 USD $1.20406
≥1000 USD $1.130008
≥3000 USD $1.052366
Inventory: 1175
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 91.00
Port Location Top
Power - Rated 700mW
Frequency Range 100Hz~20kHz
Power - Max 1W
Frequency - Self Resonant 700Hz
Impedance 8Ohm
Ingress Protection IP67 - Dust Tight, Waterproof
Technology Magnetic
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Series CMS
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 11 Weeks
