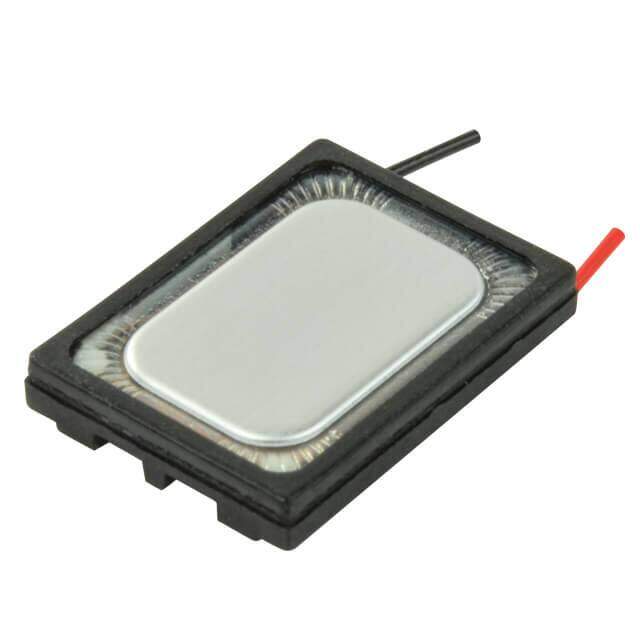

CMS-151125-078L100-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER, 15 X 11 MM, 2.5 MM DEEP
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.255132
≥1 USD $1.255132
Inventory: 5261
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Series CMS
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type General Purpose
Technology Magnetic
Ingress Protection IP67 - Dust Tight, Waterproof
Impedance 8Ohm
Frequency - Self Resonant 700Hz
Power - Max 1W
Frequency Range 100Hz~20kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 91.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 700mW/100mm
Dimensions
Height Seated (Max) 0.098 2.50mm
Compliance
RoHS Status RoHS Compliant
