CMS-151103-088SP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

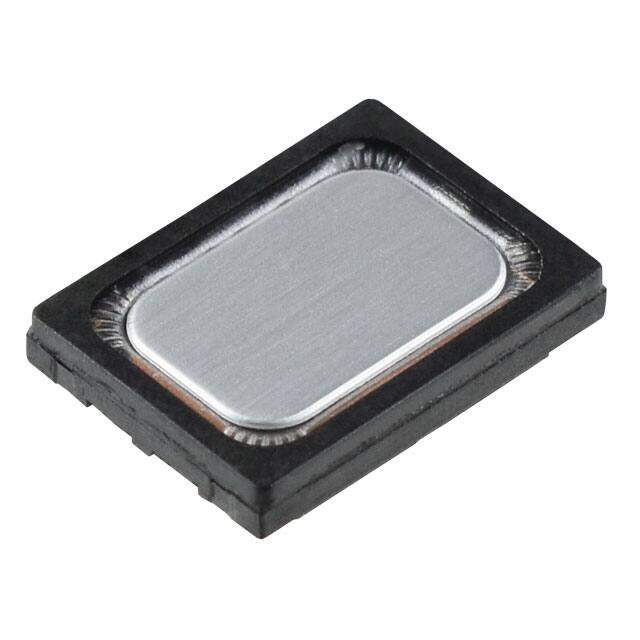

SPEAKER 15 X 11MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.18624
≥100 USD $1.096128
≥500 USD $1.030832
≥1000 USD $0.967824
≥3000 USD $0.896658
Inventory: 564
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B
Technical
Operating Temperature -20°C~70°C
Series CMS
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 550Hz
Power - Max 1W
Frequency Range 100Hz~20kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 700mW/100mm
Distortion Rating 15% Max @ 800Hz ~ 1.2KHz, 0.1M, 2.37V; 10% Max @ 1.201Hz ~ 5KHz, 0.1M, 2.37V
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
