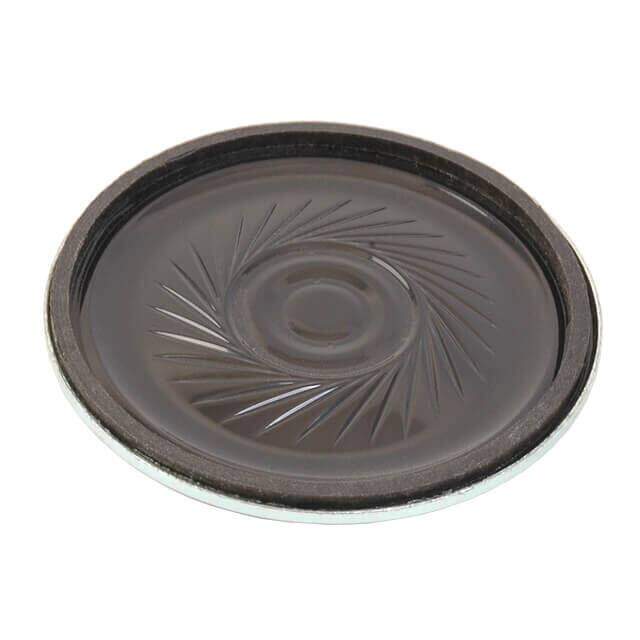

CLS0402MA-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
Speakers & Transducers speaker, 40 mm round, 5.3 mm deep, mylar, Nd-Fe-B, 500 mW, 8 O, 530 Hz, solder pads
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.595603
≥1 USD $2.595603
Inventory: 4317
Minimum: 1
-
+
Technical Details
Technical
Power - Rated 500mW
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 500mW/500mm
Frequency Range 530Hz~6kHz
Power - Max 1W
Frequency - Self Resonant 530Hz
Impedance 8Ohm
Technology Magnetic
Type Low Profile
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.575Dia 40.00mm
Series CLS
Published 2012
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
RoHS Status RoHS Compliant
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Supply Chain
Factory Lead Time 16 Weeks
