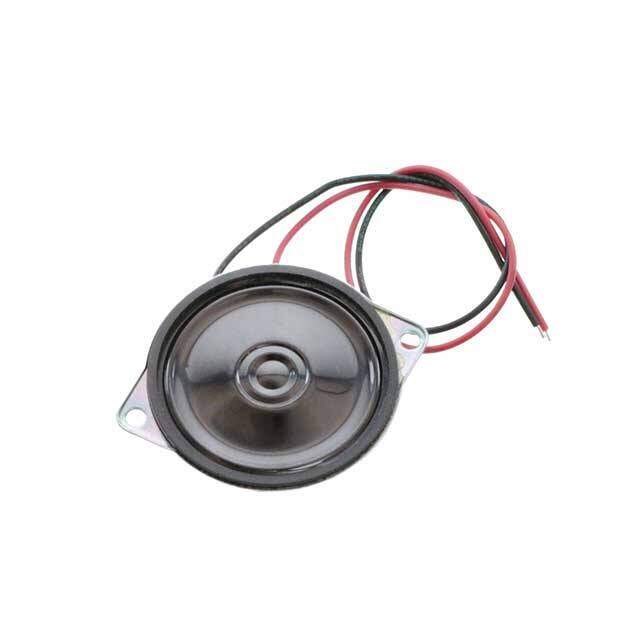

CLS0401MAE-L152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 4OHM 1W TOP PORT 91DB
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.4936
≥1 USD $3.4936
≥10 USD $2.88288
≥100 USD $2.657952
≥500 USD $2.49458
≥1000 USD $2.33772
≥3000 USD $2.069998
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5.3mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 91.00
Port Location Top
Power - Rated 1W
Frequency Range 500Hz~7kHz
Power - Max 2W
Frequency - Self Resonant 500Hz
Impedance 4Ohms
Technology Magnetic
Max Power Dissipation 2W
Power Rating 1W
Resistance 4Ohm
Type Low Profile
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.575Dia 40.00mm
Series CLS
Published 2011
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
