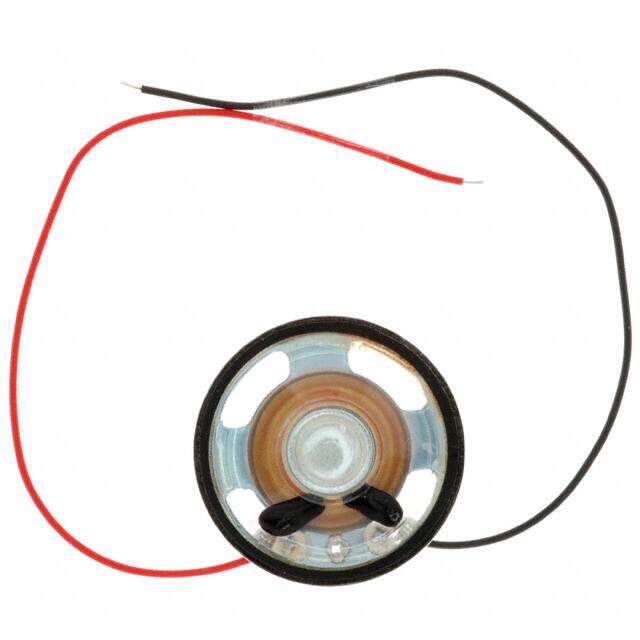

CLS0381M-L152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 200MW TOP PORT 80DB
PDF
/
Buying Options
Total Price: USD $6.5
Unit Price: USD $6.504107
≥1 USD $6.504107
≥200 USD $2.595603
≥400 USD $2.508952
≥800 USD $2.465626
Inventory: 5790
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2011
Series CLS
Size / Dimension 1.496Dia 38.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Low Profile
Resistance 8Ohm
Power Rating 200mW
Max Power Dissipation 400mW
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 800Hz
Frequency Range 800Hz~3.4kHz
Power - Rated 200mW
Port Location Top
Efficiency - dBA 80.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 200mW/500mm
Dimensions
Height 10mm
Height Seated (Max) 0.382 9.70mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
