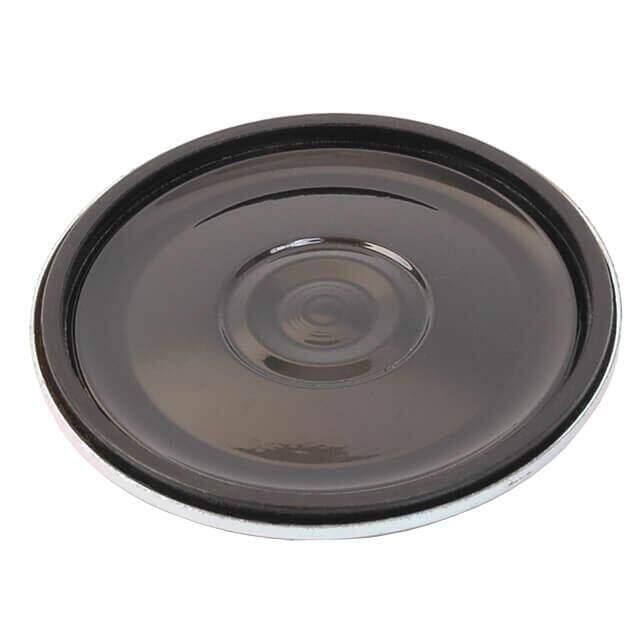

CLS0362MA-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
Speakers & Transducers speaker, 36 mm round, 5 mm deep, mylar, Nd-Fe-B, 500 mW, 8 O, 550 Hz, solder pads
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
≥10 USD $1.92984
≥100 USD $1.780416
≥500 USD $1.672176
≥1000 USD $1.568072
≥3000 USD $1.456858
Inventory: 980
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.197 5.00mm
Technical
Efficiency - Testing 500mW/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 89.00
Port Location Top
Power - Rated 500mW
Frequency Range 550Hz~6kHz
Power - Max 1W
Frequency - Self Resonant 550Hz
Impedance 8Ohm
Technology Magnetic
Type Low Profile
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.417Dia 36.00mm
Series CLS
Published 2012
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Supply Chain
Factory Lead Time 16 Weeks
