CES-2704-088L050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

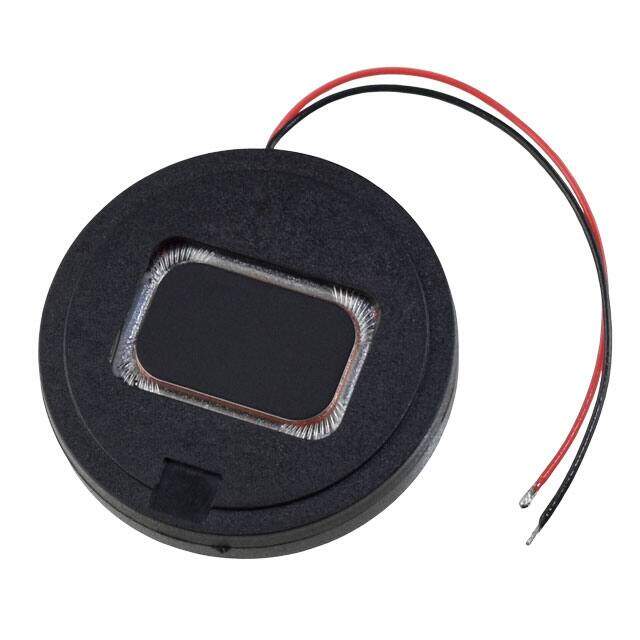

SPEAKER 27MM ROUND ENCLOSED
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5256
≥1 USD $2.5256
≥10 USD $2.09088
≥100 USD $1.929664
≥500 USD $1.81214
≥1000 USD $1.699227
≥3000 USD $1.465913
Inventory: 703
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Shape Round
Material - Cone Plastic
Material - Magnet Nd-Fe-B
Technical
Operating Temperature -30°C~70°C
Series CES
Size / Dimension 1.063Dia 27.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type General Purpose
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 850Hz
Power - Max 1W
Frequency Range 50Hz~20kHz
Power - Rated 800mW
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 800mW/100mm
Dimensions
Height Seated (Max) 0.193 4.90mm
Compliance
RoHS Status RoHS Compliant
