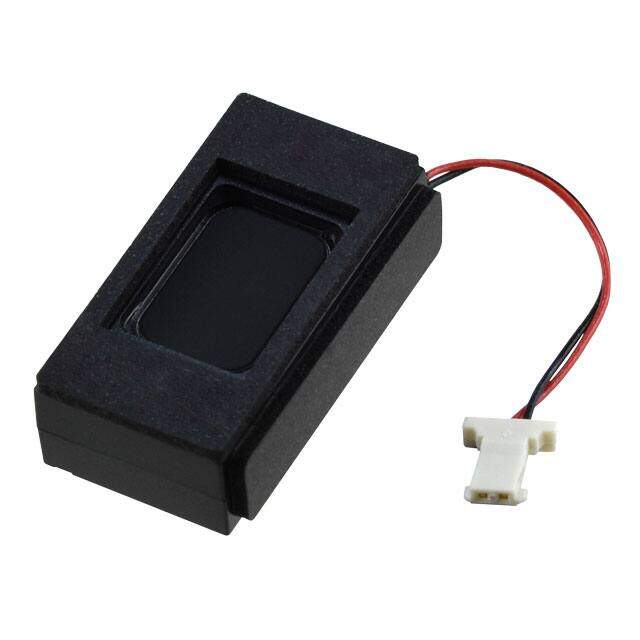

CES-26138-16L030 image
Favorite
CES-26138-16L030 image
Favorite

CES-26138-16L030

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description SPEAKER 26 X 13MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5256
≥1 USD $2.5256
≥10 USD $2.09088
≥100 USD $1.929664
≥500 USD $1.812043
≥1000 USD $1.699218
≥3000 USD $1.578685
Inventory: 417
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B

Technical

Operating Temperature -20°C~70°C
Series CES
Size / Dimension 1.024Lx0.512W 26.00mmx13.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type General Purpose
Technology Magnetic
Impedance 6Ohm
Frequency - Self Resonant 1kHz
Power - Max 1.5W
Frequency Range 500Hz~20kHz
Power - Rated 1.2W
Port Location Top
Efficiency - dBA 95.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1.2W/100mm
Distortion Rating 10% Max @ 2KHz, 0.1M, 1.2W

Dimensions

Height Seated (Max) 0.315 8.00mm

Compliance

RoHS Status RoHS Compliant
