CES-20134-088PM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

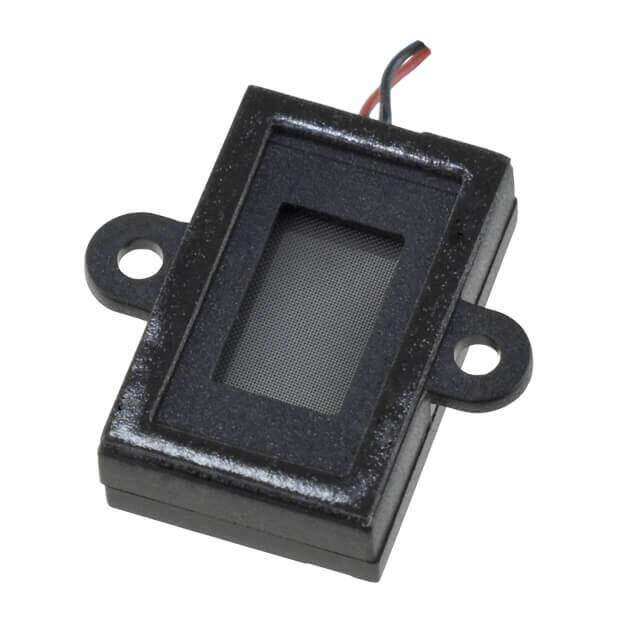

SPEAKER 20 X 13MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.59632
≥100 USD $1.515712
Inventory: 1166
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.192 4.87mm
Technical
Distortion Rating 10% Max @ 2KHz, 0.1M, 0.8W
Efficiency - Testing 800mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 91.00
Port Location Top
Power - Rated 800mW
Frequency Range 500Hz~20kHz
Power - Max 1W
Frequency - Self Resonant 1.3kHz
Impedance 8Ohm
Technology Magnetic
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.787Lx0.633W 20.00mmx16.09mm
Series CES
Operating Temperature -20°C~70°C
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyetheretherketone (PEEK)
Shape Rectangular
Supply Chain
Factory Lead Time 5 Weeks
