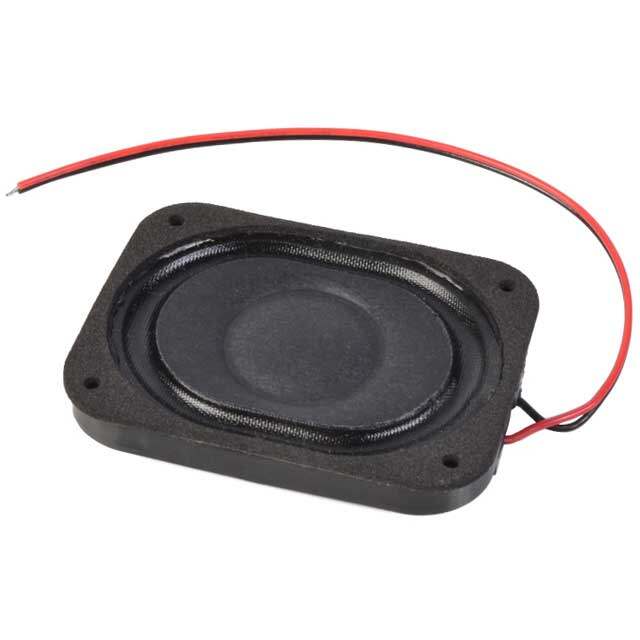

CDS-40304-L1003
RoHS
/
Package /
Category Audio Products / Speakers
Description
Magnetic General Purpose Wire Leads Paper/Cloth Speaker General Purpose 400Hz 320Hz~20kHz 4Ohm 3W
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.488
≥1 USD $4.488
≥10 USD $3.7048
≥100 USD $3.415808
≥500 USD $3.206016
≥1000 USD $3.00432
≥3000 USD $2.824026
Inventory: 20461
Minimum: 1
-
+
Technical Details
Dimensions
Height Seated (Max) 0.280 7.10mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 79.00
Port Location Top
Power - Rated 2W
Frequency Range 320Hz~20kHz
Power - Max 3W
Frequency - Self Resonant 400Hz
Impedance 4Ohm
Technology Magnetic
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.575Lx1.181W 40.00mmx30.00mm
Series CDS
Physical
Material - Magnet Nd-Fe-B
Material - Cone Paper/Cloth
Shape Rectangular
Supply Chain
Factory Lead Time 14 Weeks
