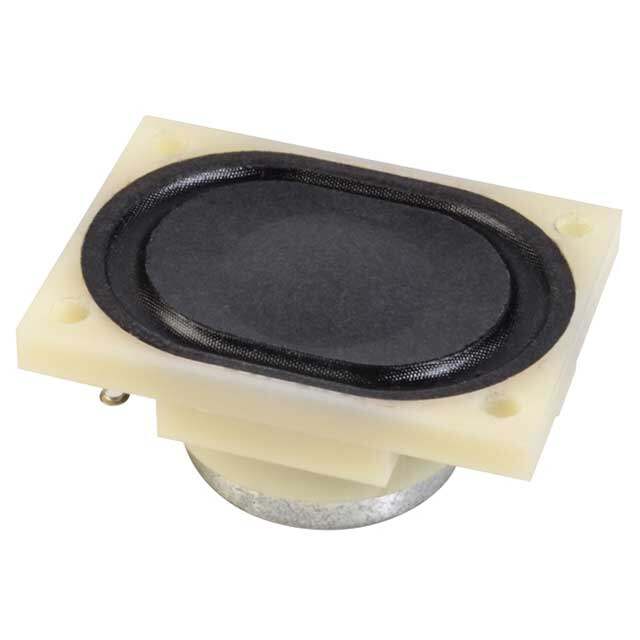

CDS-40288
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 6W TOP PORT 84DB
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Rectangular
Material - Cone Paper/Cloth
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2016
Series CDS
Size / Dimension 1.575Lx1.122W 40.00mmx28.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type General Purpose
Power Rating 6W
Max Power Dissipation 8W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 650Hz
Power - Max 8W
Frequency Range 520Hz~10kHz
Power - Rated 6W
Port Location Top
Efficiency - dBA 84.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 18mm
Height Seated (Max) 0.689 17.50mm
Length 40mm
Width 28.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
