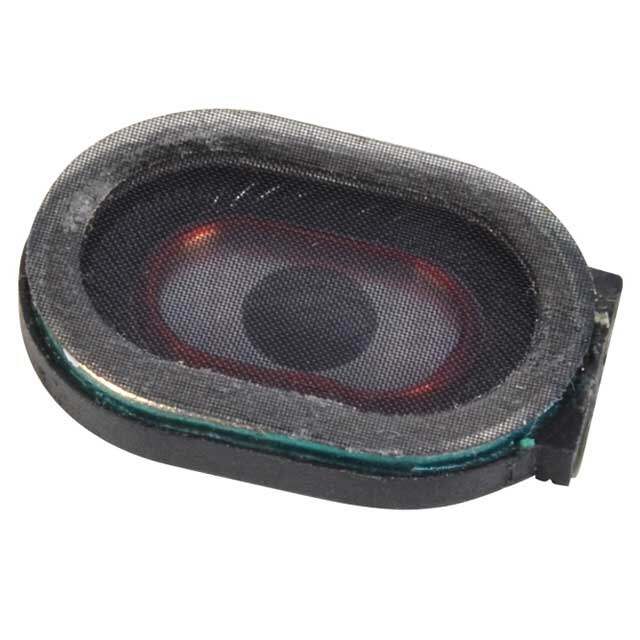

CDS-20144
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 4OHM 1W TOP PORT 92DB
PDF
/
Buying Options
Total Price: USD $2.67
Unit Price: USD $2.6664
≥1 USD $2.6664
≥10 USD $2.20528
≥100 USD $2.03456
≥500 USD $1.9107
≥1000 USD $1.791592
≥3000 USD $1.66452
Inventory: 753
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 14mm
Length 20mm
Height Seated (Max) 0.138 3.50mm
Height 3.7mm
Technical
Efficiency - Testing 1W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 92.00
Port Location Top
Power - Rated 1W
Frequency Range 480Hz~20kHz
Power - Max 1.2W
Frequency - Self Resonant 600Hz
Impedance 4Ohms
Technology Magnetic
Max Power Dissipation 1.2W
Power Rating 1W
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.787Lx0.551W 20.00mmx14.00mm
Series CDS
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Oval
Supply Chain
Factory Lead Time 14 Weeks
