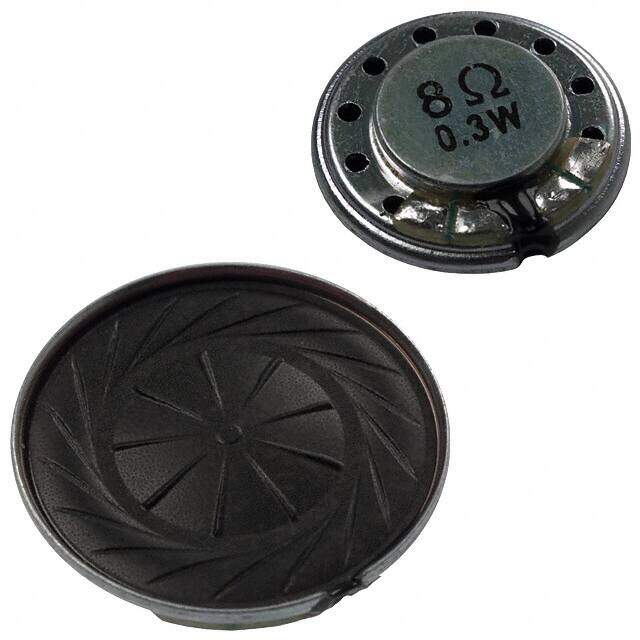

CDMG15008-03
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 300MW TOP PORT 91DB
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.998234
≥1 USD $1.998234
≥200 USD $0.79693
≥500 USD $0.770672
≥1000 USD $0.757543
Inventory: 2078
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.110 2.80mm
Height 3mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 77.00
Port Location Top
Power - Rated 300mW
Frequency Range 900Hz~20kHz
Power - Max 500mW
Frequency - Self Resonant 900Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 500mW
Power Rating 300mW
Resistance 8Ohm
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.591Dia 15.00mm
Series CDMG
Published 2004
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Weight 1.2g
Housing Material Plastic
