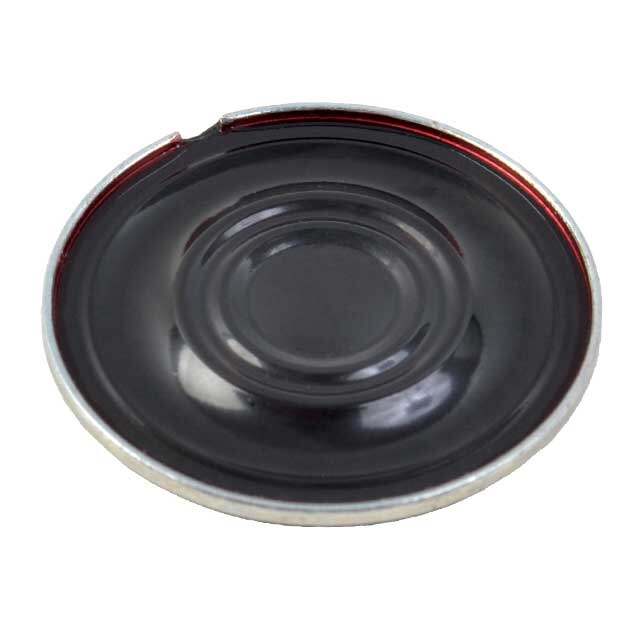

CDM-20008
RoHS
RoHS compliant
RoHS compliantPackage 300
Category Audio Products / Speakers
Description
SPEAKER 8OHM 300MW TOP PORT 92DB
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.31648
≥100 USD $1.215808
≥500 USD $1.14268
≥1000 USD $1.07228
≥3000 USD $0.919468
Inventory: 1532
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case 300
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2016
Series CDM
Size / Dimension 0.787Dia 20.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type General Purpose
Power Rating 300mW
Max Power Dissipation 500mW
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 560Hz
Power - Max 500mW
Frequency Range 448Hz~7kHz
Power - Rated 300mW
Port Location Top
Efficiency - dBA 92.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 300mW/100mm
Dimensions
Height 3.1mm
Height Seated (Max) 0.122 3.10mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
