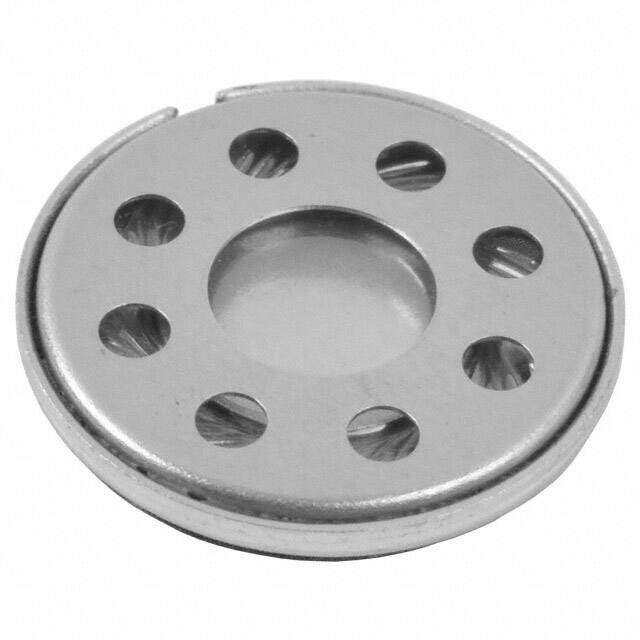

CDM-16008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 400MW TOP PORT 93DB
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.15456
≥100 USD $1.06656
≥500 USD $1.0637
Inventory: 1157
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.126 3.20mm
Height 3.2mm
Technical
Efficiency - Testing 400mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 93.00
Port Location Top
Power - Rated 400mW
Frequency Range 640Hz~20kHz
Power - Max 600mW
Frequency - Self Resonant 800Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 600mW
Power Rating 400mW
Resistance 8Ohm
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.630Dia 16.00mm
Series CDM
Published 2015
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Supply Chain
Factory Lead Time 14 Weeks
