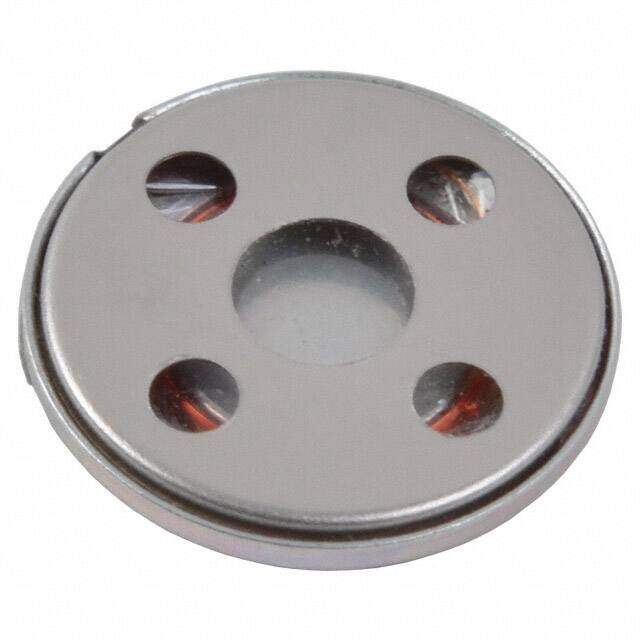

CDM-13008
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Audio Products / Speakers
Description
SPEAKER 8OHM 200MW TOP PORT 87DB
PDF
/
Buying Options
Total Price: USD $1.53
Unit Price: USD $1.5312
≥1 USD $1.5312
≥10 USD $1.2716
≥100 USD $1.174976
≥500 USD $1.10506
≥1000 USD $1.037432
≥3000 USD $0.961198
Inventory: 400
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.114 2.90mm
Height 2.9mm
Technical
Efficiency - Testing 200mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 87.00
Port Location Top
Power - Rated 200mW
Frequency Range 880Hz~20kHz
Frequency - Self Resonant 1100Hz
Impedance 8Ohm
Technology Magnetic
Max Power Dissipation 500mW
Power Rating 200mW
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.512Dia 13.00mm
Series CDM
Published 2015
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Package / Case 200
Supply Chain
Factory Lead Time 14 Weeks
