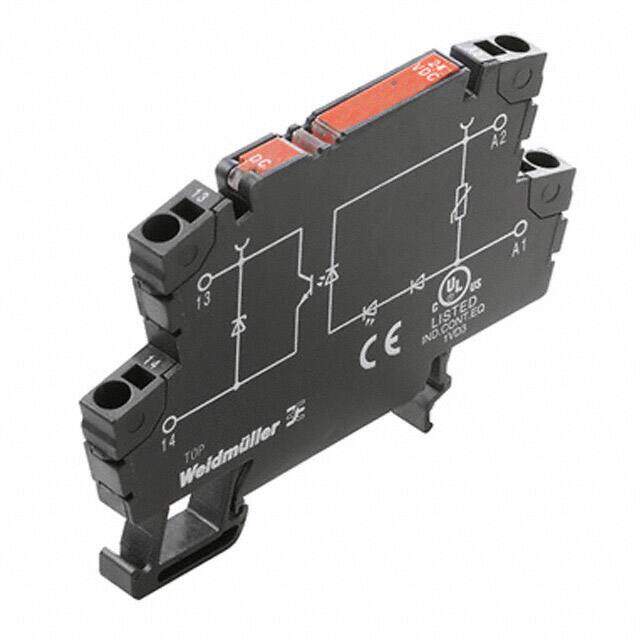

8950770000
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 100MA 5-48V
PDF
/
Inventory: 4934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 6.1mm
Height 79.5mm
Technical
Load Current 100mA
Voltage - Load 5V~48V
Dropout Voltage 4.8V
Number of Poles 1
Voltage - Input 12VDC
Leakage Current 10μA
Circuit SPST-NO (1 Form A)
Output Type DC
Approval Agency CE, IEC, cULus
Termination Style Spring Terminal
Depth 55mm
Power Rating 95mW
Voltage - Rated 12V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TOP
Published 2011
Packaging Bulk
Physical
Package / Case Module
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
