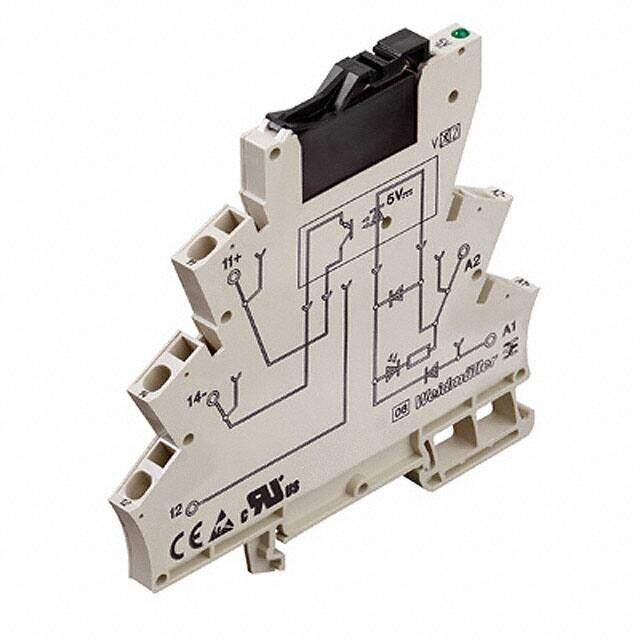

8652020000
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
AC RoHS Compliant CE cULus Obsolete Solid State Relay 250mW 24VDC 94mm 1.5mA
PDF
/
Inventory: 3101
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Number of Pins 5
Technical
Packaging Bulk
Published 2011
Series MOZ
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated 24V
Power Rating 250mW
Depth 94mm
Termination Style Spring Terminal
Approval Agency CE, cULus
Output Type AC
Max Output Current 1A
Circuit SPST-NO (1 Form A)
Leakage Current 1.5mA
Voltage - Input 24VDC
Number of Poles 1
Dropout Voltage 15.5V
Voltage - Load 24V~240V
Dimensions
Height 94mm
Width 6.1mm
Compliance
RoHS Status RoHS Compliant
