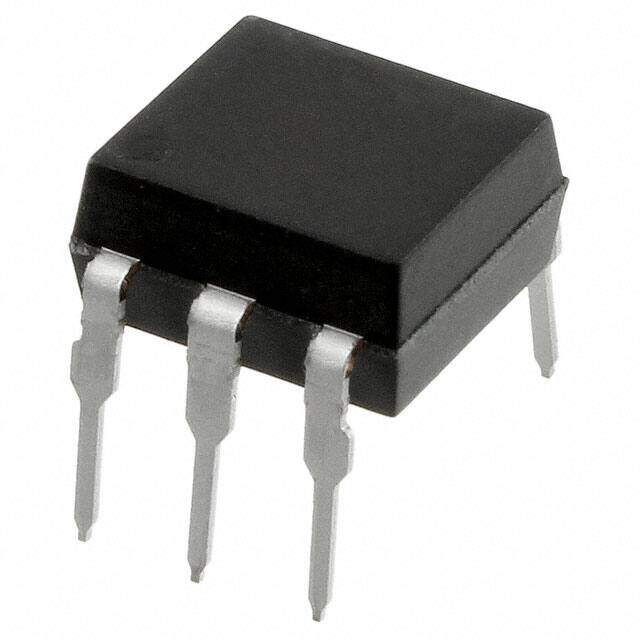

VO14642AT
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
Solid State Relays - PCB Mount Normally Open Form 1A 60V
PDF
/
Buying Options
Total Price: USD $6.5
Unit Price: USD $6.501481
≥1 USD $6.501481
≥10 USD $5.74525
≥30 USD $5.28311
≥100 USD $4.265612
Inventory: 1288
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 3.8mm
Technical
On-State Resistance 180mOhm
Overall Length 8.7mm
Ambient Temperature Range High 85°C
Max Junction Temperature (Tj) 125°C
Isolation Voltage 5.3kV
On-State Current-Max 2A
Input Current 50mA
Max Input Current 50mA
On-State Resistance (Max) 250mOhm
Voltage - Load 0V~60V
Relay Type Relay
Max Input Voltage 1.5V
Max Output Voltage 60V
Forward Current 500μA
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Input Type DC
Throw Configuration SPST
Output Current 2A
Voltage - Input 1.3VDC
Circuit SPST-NO (1 Form A)
Number of Elements 1
Max Output Current 2A
Output Type AC, DC
Number of Contacts 1
Voltage - Rated AC 60V
Termination Style PC Pin
Max Power Dissipation 330mW
Voltage - Rated DC 60V
Additional Feature UL RECOGNIZED, CMOS COMPATIBLE
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
Resistance 180mOhm
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2013
Packaging Tube
Physical
Number of Pins 6
Package / Case 6-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
