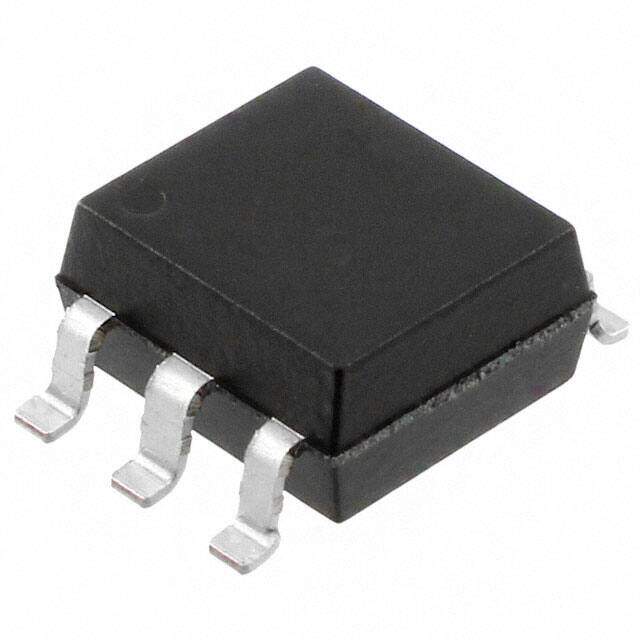

VO14642AABTR image
Favorite
VO14642AABTR image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description Relay SSR 50mA 1.5V DC-IN 2A 60V AC/DC-OUT 6-Pin PDIP SMD T/R
PDF
/
Buying Options
Total Price: USD $2.27
Unit Price: USD $2.267024
≥1 USD $2.267024
≥10 USD $1.973998
≥100 USD $1.801323
≥500 USD $1.624722
≥1000 USD $2.99535
Inventory: 351
Minimum: 1
-
+

Technical Details

Technical

Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.3VDC
Output Current 2A
Throw Configuration SPST
Input Type DC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 50mA
Max Output Voltage 60V
Max Input Voltage 1.5V
Relay Type Relay
Voltage - Load 0V~60V
On-State Resistance (Max) 250mOhm
Max Input Current 50mA
Input Current 50mA
On-State Current-Max 2A
Isolation Voltage 5.3kV
Max Junction Temperature (Tj) 125°C
Ambient Temperature Range High 85°C
Overall Length 8.7mm
On-State Resistance 250mOhm
Operating Supply Voltage 60V
Max Output Current 2A
Output Type AC, DC
Output Voltage 60V
Number of Contacts 1
Termination Style Gull Wing
Max Power Dissipation 330mW
Additional Feature UL RECOGNIZED, CMOS COMPATIBLE
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
Resistance 250mOhm
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2015
Packaging Tape & Reel (TR)

Dimensions

Height 4.25mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Number of Pins 6
Package / Case 6-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
