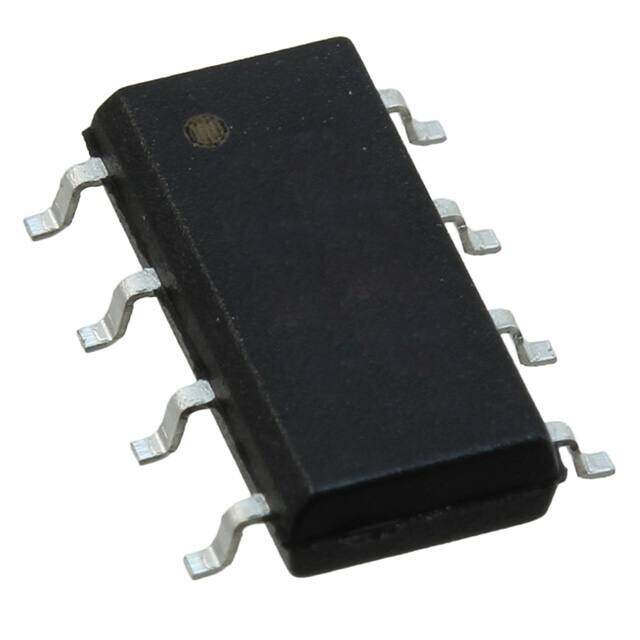

LH1532FPTR image
Favorite
RoHS
RoHS RoHS compliant
Package 8-SOP (0.180, 4.57mm Width)
Category Relays / Solid State Relays
Description Relay SSR 50mA 1.5V DC-IN 0.12A 350V AC/DC-OUT 8-Pin SOP T/R
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.52178
≥1 USD $0.52178
≥10 USD $0.492244
≥100 USD $0.464378
≥500 USD $0.438091
≥1000 USD $0.413294
Inventory: 1274
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Control Current 0.0012A
Overall Length 9.5mm
Isolation Voltage 3kV
On-State Current-Max 0.12A
Input Current 50mA
Overall Height 2mm
Max Input Current 50mA
On-State Resistance (Max) 20Ohm
Forward Current-Max 0.05A
Voltage - Load 0V~350V
Relay Type Relay
Max Input Voltage 1.5V
Max Output Voltage 350V
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Input Type DC
Throw Configuration DPST
Output Current 120mA
Voltage - Input 1.22VDC
Circuit SPST-NO (1 Form A) x 2
Number of Elements 2
Max Output Current 120mA
Output Type AC, DC
Termination Style Gull Wing
Additional Feature HIGH RELIABILITY, UL APPROVED
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 20Ohm
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series LH1532
Published 2012
Packaging Tape & Reel (TR)

Physical

Number of Pins 8
Package / Case 8-SOP (0.180, 4.57mm Width)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 23 Weeks
