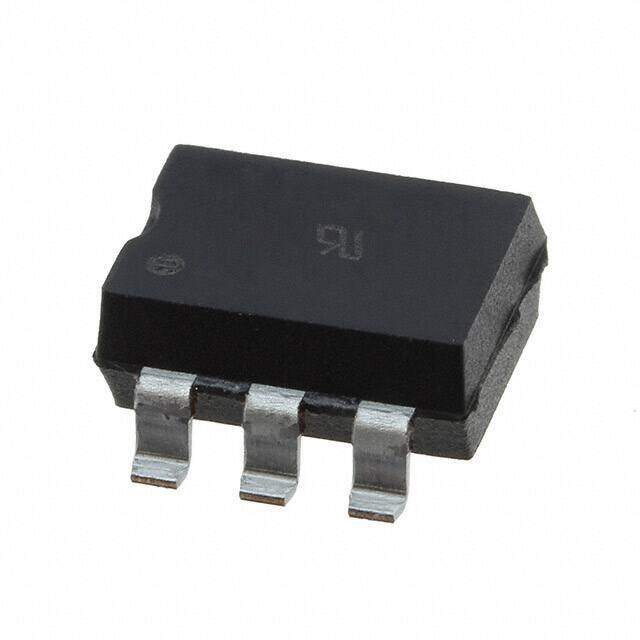

LH1525AABTR
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
Relay SSR 50mA 1.4V DC-IN 0.25A 400V AC/DC-OUT 6-Pin PDIP SMD T/R
PDF
/
Buying Options
Total Price: USD $2.79
Unit Price: USD $2.7896
≥1 USD $2.7896
≥10 USD $2.6136
≥100 USD $2.3232
≥500 USD $2.207216
≥1000 USD $2.090968
≥3000 USD $1.858666
Inventory: 964
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Control Current 0.00033A
Overall Length 8.7mm
Isolation Voltage 5.3kV
On-State Current-Max 0.125A
Input Current 50mA
Overall Height 3.8mm
Max Input Current 50mA
On-State Resistance (Max) 36Ohm
Voltage - Load 0V~400V
Relay Type Relay
Max Input Voltage 1.4V
Max Output Voltage 400V
Forward Current 330μA
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Input Type DC
Throw Configuration SPST
Output Current 250mA
Voltage - Input 1.16VDC
Circuit SPST-NO (1 Form A)
Number of Elements 1
Max Output Current 250mA
Output Type AC, DC
Termination Style Gull Wing
HTS Code 8541.40.95.00
Additional Feature HIGH RELIABILITY, UL APPROVED
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 26Ohm
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LH1525
Published 2014
Packaging Tape & Reel (TR)
Physical
Number of Pins 6
Package / Case 6-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
