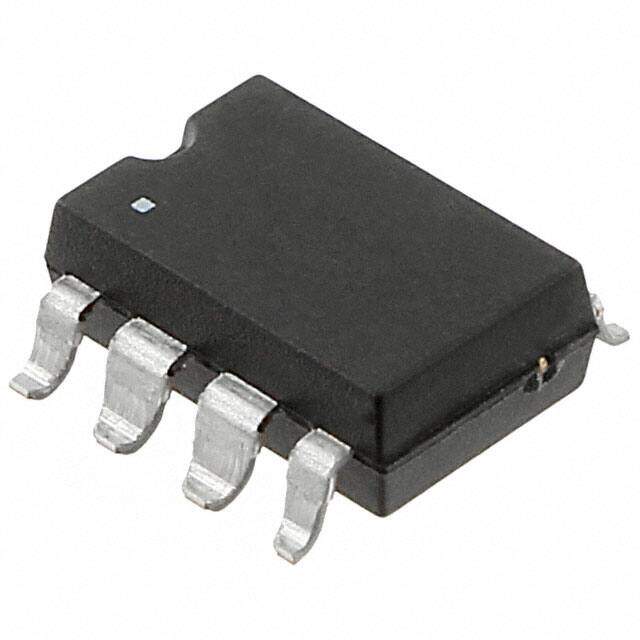

LH1512BACTR image
Favorite
RoHS
RoHS RoHS compliant
Package 8-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description Solid State Relays - PCB Mount Normally Open/Closed Form 1A/1B/1C 200V
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $4.6596
≥100 USD $4.141632
≥500 USD $3.934656
≥1000 USD $3.727592
≥3000 USD $3.313446
Inventory: 5124
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Technical

Isolation Voltage 3.75kV
Load Current 200mA
Input Current 50mA
Max Input Current 50mA
On-State Resistance (Max) 10Ohms
Voltage - Load 0V~200V
Relay Type Relay
Max Input Voltage 1.45V
Max Output Voltage 200V
Throw Configuration DPST, SPST
Output Current 200mA
Voltage - Input 1.26VDC
Circuit SPST-NO + SPST-NC (1 Form A and B)
Max Output Current 200mA
Output Type AC, DC
Termination Style Gull Wing
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 10Ohm
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LH1512
Published 2016
Packaging Tape & Reel (TR)

Physical

Supplier Device Package 8-SMD
Number of Pins 8
Package / Case 8-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
