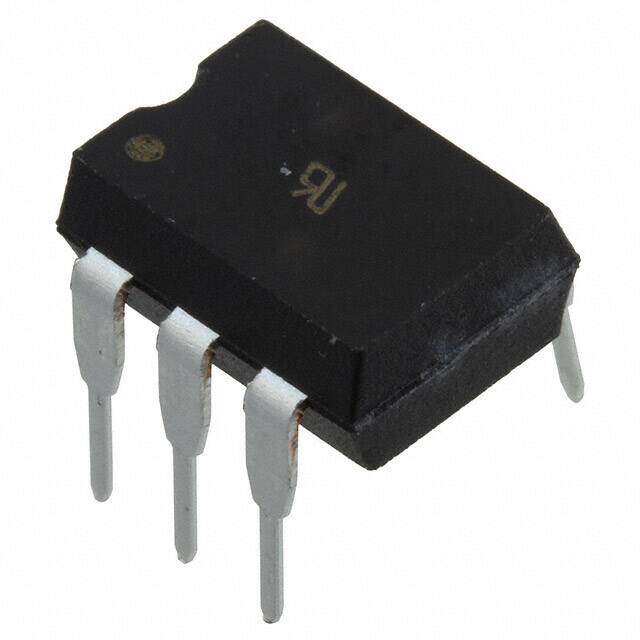

LH1510AT
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
Relay SSR 50mA 1.45V DC-IN 0.35A 200V AC/DC-OUT 6-Pin PDIP Tube
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.38744
≥100 USD $2.12256
≥500 USD $2.016256
≥1000 USD $1.910216
≥3000 USD $1.697978
Inventory: 1197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP (0.300, 7.62mm)
Number of Pins 6
Technical
Packaging Tube
Series LH1510
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Resistance 11.27Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature HIGH RELIABILITY, VDE APPROVED, UL APPROVED
HTS Code 8541.40.95.00
Depth 6.5mm
Termination Style PC Pin
Output Type AC, DC
Max Output Current 350mA
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.27VDC
Output Current 350mA
Throw Configuration SPST
Input Type DC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 950μA
Max Output Voltage 200V
Max Input Voltage 1.45V
Relay Type Relay
Voltage - Load 0V~200V
On-State Resistance (Max) 15Ohm
Max Input Current 50mA
Input Current 50mA
On-State Current-Max 0.2A
Load Current 200mA
Isolation Voltage 5.3kV
Control Current 0.00095A
Dimensions
Height 3.81mm
Length 8.7mm
Width 8.6mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
