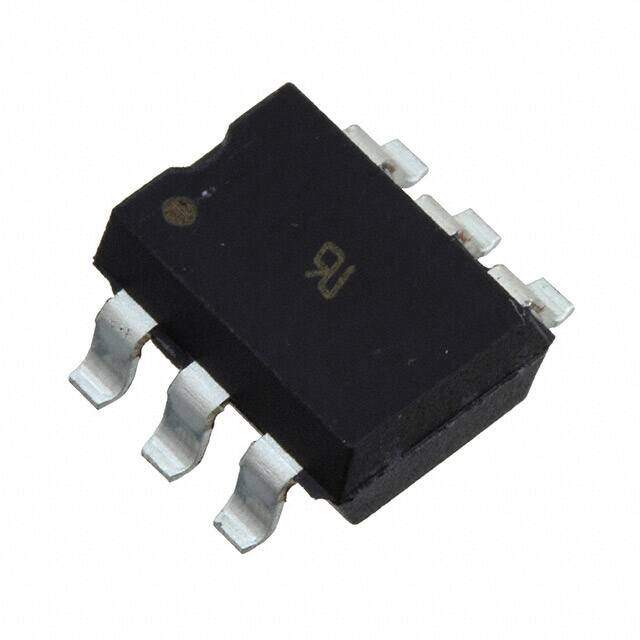

LH1510AAB image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description VISHAY - LH1510AAB - SSR, MOSFET, 200V, 200mA
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
≥10 USD $2.42968
≥100 USD $2.159872
≥500 USD $2.051808
≥1000 USD $1.943832
≥3000 USD $1.727827
Inventory: 2255
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD (0.300, 7.62mm)
Number of Pins 6

Technical

Packaging Tube
Series LH1510
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Resistance 15Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Capacitance 720FF
Depth 6.5mm
Termination Style Gull Wing
Approval Agency UL
Output Voltage 200V
Output Type AC, DC
Max Output Current 350mA
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.27VDC
Power Dissipation 550mW
Output Current 350mA
Number of Poles 1
Throw Configuration SPST
Input Type DC
Turn On Delay Time 2 ms
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 950μA
Max Output Voltage 200V
Max Input Voltage 1.45V
Relay Type Relay
Forward Voltage 1.27V
Turn-Off Delay Time 700 μs
Voltage - Load 0V~200V
On-State Resistance (Max) 15Ohm
Max Input Current 50mA
Input Current 50mA
On-State Current-Max 0.2A
Load Current 200mA
Isolation Voltage 5.3kV
Control Current 0.00095A

Dimensions

Height 3.81mm
Length 8.71mm
Width 8.6mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
