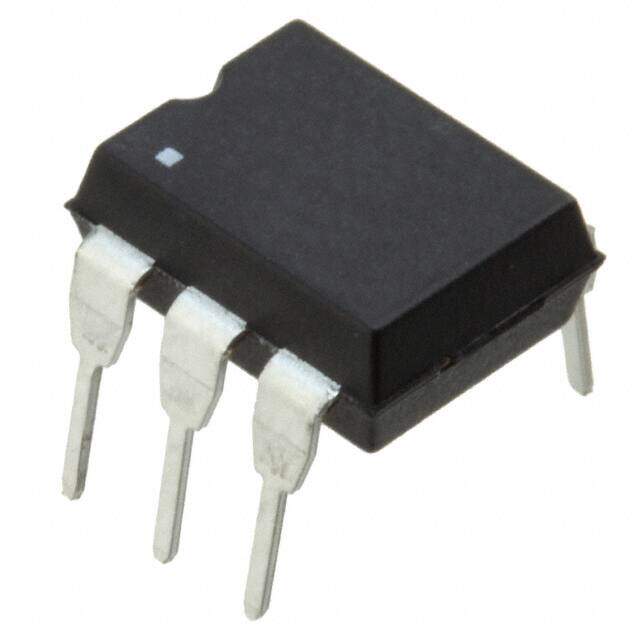

LH1501BT image
Favorite
RoHS
RoHS RoHS compliant
Package 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description VISHAY SEMICONDUCTOR LH1501BT MOSFET Relay, 350 V, 150 mA, 25 ohm, SPST-NC
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.6004
≥100 USD $2.311936
≥500 USD $2.196128
≥1000 USD $2.080584
≥3000 USD $2.034982
Inventory: 440
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP (0.300, 7.62mm)
Number of Pins 6
Supplier Device Package 6-DIP

Technical

Packaging Tube
Published 2011
Series LH1501
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Resistance 20Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Termination Style PC Pin
Output Voltage 350V
Output Type AC, DC
Max Output Current 200mA
Circuit SPST-NC (1 Form B)
Voltage - Input 1.26VDC
Output Current 200mA
Throw Configuration SPST
Forward Current 900μA
Max Output Voltage 350V
Max Input Voltage 1.45V
Relay Type Relay
Voltage - Load 0V~350V
On-State Resistance (Max) 20Ohms
Max Input Current 50mA
Input Current 50mA
Load Current 150mA
Isolation Voltage 3.75kV

Dimensions

Width 8.6mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
