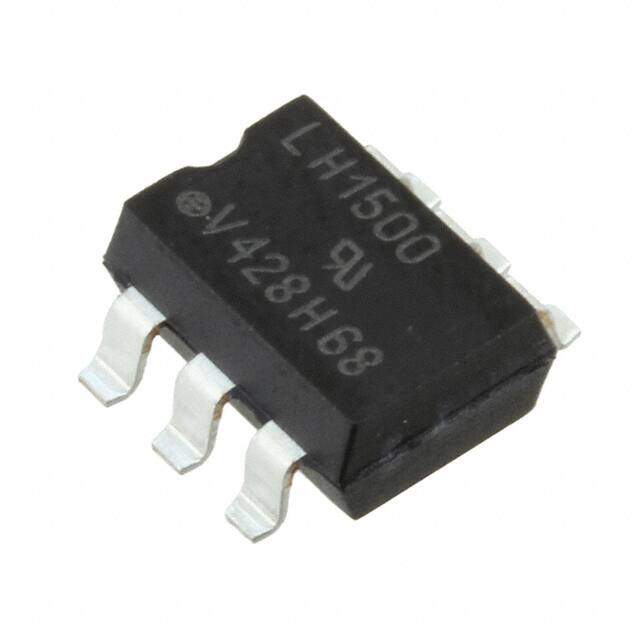

LH1500AAB
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
VISHAY SEMICONDUCTOR LH1500AAB MOSFET Relay, 350 V, 150 mA, 25 ohm, SPST-NO
PDF
/
Buying Options
Total Price: USD $2.07
Unit Price: USD $2.068
≥1 USD $2.068
≥10 USD $1.93952
≥100 USD $1.724096
≥500 USD $1.638032
≥1000 USD $1.55188
≥3000 USD $1.379418
Inventory: 2077
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Isolation Voltage 5.3kV
Load Current 150mA
Input Current 50mA
Max Input Current 50mA
On-State Resistance (Max) 20Ohm
Voltage - Load 0V~350V
Relay Type Relay
Max Input Voltage 1.45V
Max Output Voltage 350V
Forward Current 900μA
Throw Configuration SPST
Output Current 250mA
Voltage - Input 1.25VDC
Circuit SPST-NO (1 Form A)
Max Output Current 250mA
Output Type AC, DC
Output Voltage 350V
Termination Style Gull Wing
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 20Ohm
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LH1500
Published 2005
Packaging Tube
Physical
Number of Pins 6
Package / Case 6-SMD (0.300, 7.62mm)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
