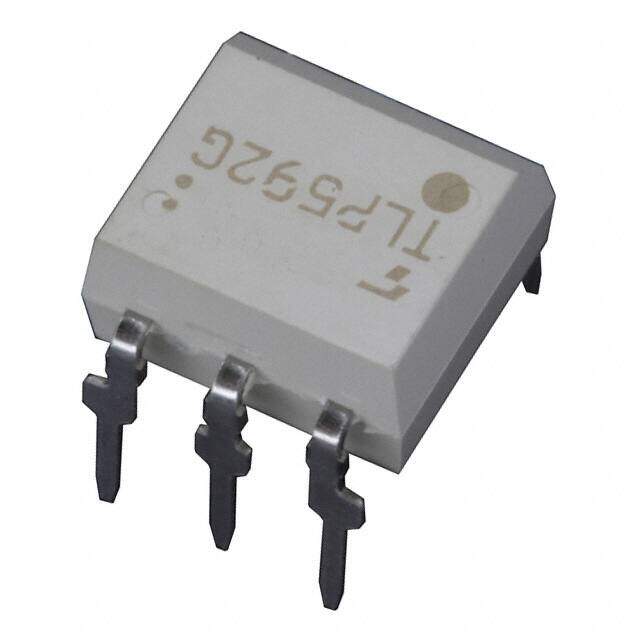

TLP592G(F)
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
PHOTORELAY MOSFET OUT 3MA 6-DIP
PDF
/
Buying Options
Total Price: USD $7.61
Unit Price: USD $7.6133
≥1 USD $7.6133
≥10 USD $6.2472
≥100 USD $6.0515
≥500 USD $5.85675
≥1000 USD $5.66105
Inventory: 1231
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Isolation Voltage 2.5kV
Load Current 110mA
Input Current 50mA
Max Input Current 50mA
On-State Resistance (Max) 50Ohm
Voltage - Load 0V~350V
Relay Type Relay
Max Input Voltage 1.3V
Max Output Voltage 350V
Throw Configuration SPST
Output Current 120mA
Voltage - Input 1.15VDC
Number of Channels 1
Circuit SPST-NO (1 Form A)
Max Output Current 120mA
Output Type AC, DC
Termination Style PC Pin
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 50Ohm
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TLP592G
Published 2009
Packaging Tube
Physical
Number of Pins 6
Package / Case 6-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
