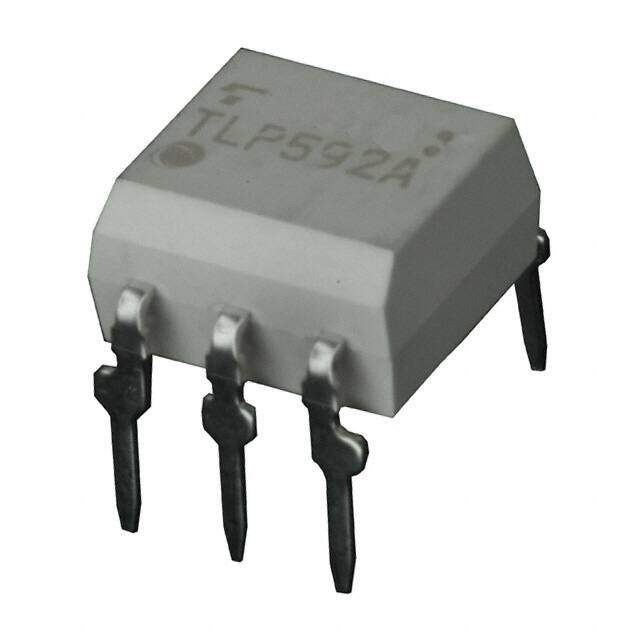

TLP592A(F)
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
PHOTORELAY MOSFET OUT 3MA 6-DIP
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.05952
≥100 USD $0.941952
≥500 USD $0.89496
≥1000 USD $0.84788
≥3000 USD $0.753702
Inventory: 1250
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP (0.300, 7.62mm)
Number of Pins 6
Technical
Packaging Tube
Published 2009
Series TLP592A
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Resistance 2Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Termination Style PC Pin
Output Type AC, DC
Max Output Current 500mA
Circuit SPST-NO (1 Form A)
Number of Channels 1
Voltage - Input 1.15VDC
Output Current 500mA
Throw Configuration SPST
Forward Current 7.5mA
Max Output Voltage 60V
Max Input Voltage 1.3V
Relay Type Relay
Forward Voltage 1.3V
Voltage - Load 0V~60V
On-State Resistance (Max) 2Ohm
Max Input Current 50mA
Input Current 50mA
Isolation Voltage 2.5kV
Reverse Voltage (DC) 5V
Dimensions
Height 3.65mm
Length 7.12mm
Width 6.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
