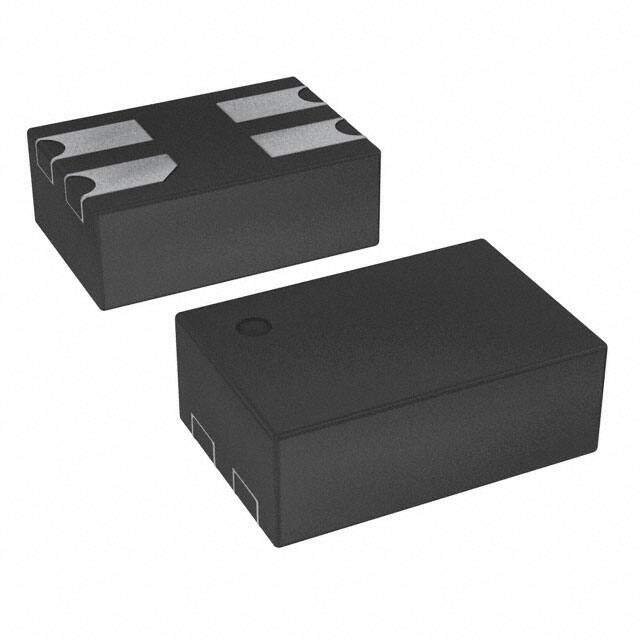

TLP3475(TP,F
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD (0.096, 2.45mm)
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 300MA 0-50V
PDF
/
Buying Options
Total Price: USD $3.51
Unit Price: USD $3.5112
≥1 USD $3.5112
≥10 USD $2.48248
≥100 USD $2.03324
≥500 USD $1.714046
≥1000 USD $1.572199
Inventory: 35572
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD (0.096, 2.45mm)
Technical
Packaging Tape & Reel (TR)
Published 2016
Series TLP3475
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Reach Compliance Code unknown
Termination Style SMD (SMT) Tab
Operating Temperature (Max) 65°C
Operating Temperature (Min) -20°C
Output Type AC, DC
Number of Elements 1
Circuit SPST-NO (1 Form A)
Configuration SINGLE WITH BUILT-IN DIODE
Voltage - Input 1.27VDC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Voltage - Load 0V~50V
Forward Current-Max 0.02A
On-State Resistance (Max) 1.5Ohm
Load Current 300mA
Isolation Voltage-Max 300V
Compliance
RoHS Status RoHS Compliant
