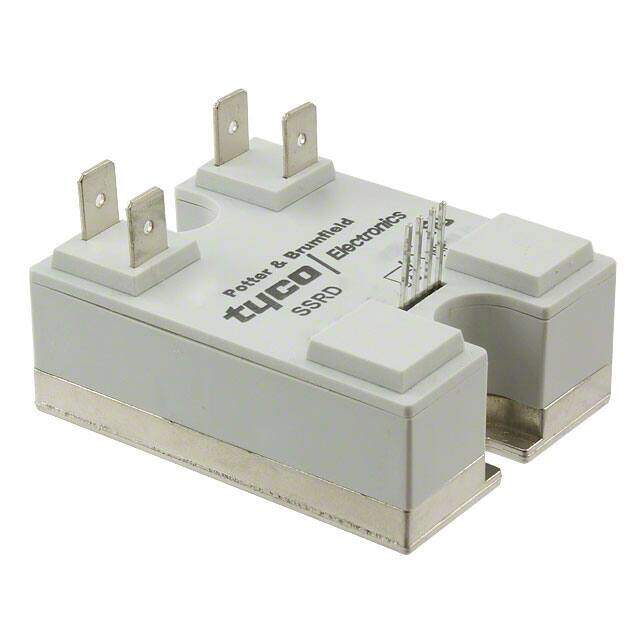

SSRD-240D40 image
Favorite
RoHS
RoHS RoHS compliant
Package Hockey Puck
Category Relays / Solid State Relays
Description RELAY SSR DUAL 40A 240VAC DC-IN
PDF
/
Inventory: 4786
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Not Applicable
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 57.2mm
Length 44.45mm
Height 22.6mm

Technical

Nominal Input Voltage (DC) 15V
Load Current 40A
Input Current 40A
Max Input Current 34mA
Voltage - Load 24V~280V
Relay Type Relay
Contact Current Rating 40A
Max Output Voltage 280V
Turn On Delay Time 8.33 ms
Max Voltage Rating (DC) 15V
Throw Configuration SPST
Output Current 40A
Voltage - Input 4V~15VDC
ELV Compliant
Circuit SPST-NO (1 Form A) x 2
Operating Supply Voltage 280V
Output Type AC, Zero Cross
Approval Agency cULus
Voltage - Rated AC 240V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 40A
Depth 57.15mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Quick Connect
Part Status Active
Series SSRD
Published 2004
Packaging Bulk

Physical

Supplier Device Package Hockey Puck
Number of Pins 8
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 17 Weeks
