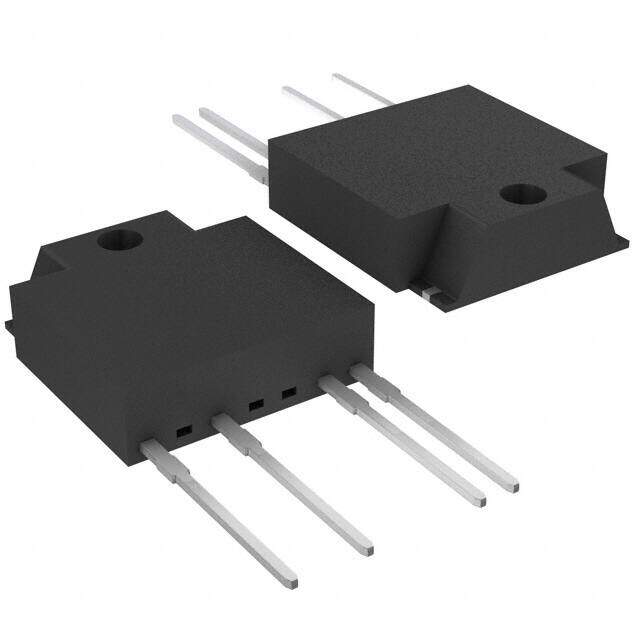

S212S01F
RoHS
/
Package 4-SIP
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 12A 80-240V
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.0465
≥1 USD $8.0465
≥10 USD $6.6025
≥100 USD $6.39635
≥500 USD $6.18925
≥1000 USD $5.9831
Inventory: 28409
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 4-SIP
Number of Pins 4
Technical
Packaging Bulk
Published 2004
Series S212
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Max Operating Temperature 100°C
Min Operating Temperature -25°C
Termination Style PC Pin
Output Type AC
Max Output Current 12A
Number of Elements 1
Circuit SPST-NO (1 Form A)
Voltage - Input 1.2VDC
Output Current 12A
Throw Configuration SPST
Optoelectronic Device Type TRIGGER OUTPUT SSR
Max Output Voltage 600V
Max Input Voltage 1.4V
Relay Type Relay
Voltage - Load 80V~240V
Forward Current-Max 0.05A
Max Input Current 50mA
Input Current 100μA
Isolation Voltage 4kV
Dimensions
Height 24.6mm
Length 18.5mm
Width 5.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
