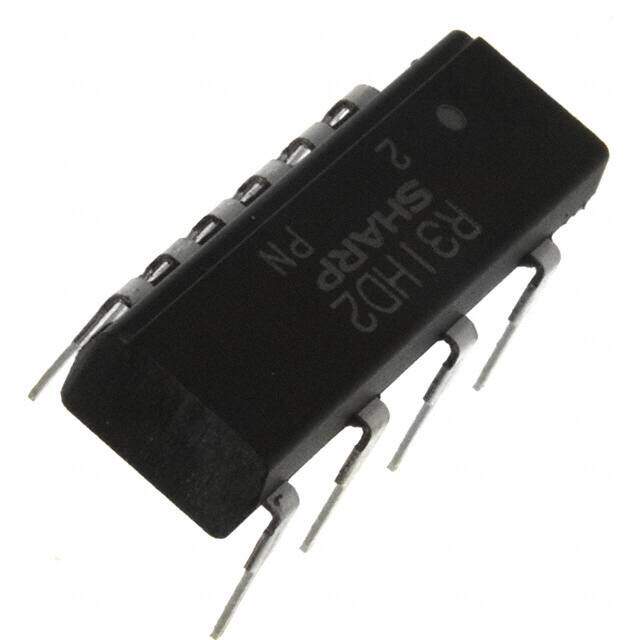

PR31HD22NSZ
RoHS
/
Package 16-DIP (0.300, 7.62mm), 10 Leads
Category Relays / Solid State Relays
Description
RELAY SSR 240VAC 1.5A ZC 16-DIP
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.131267
≥1 USD $3.131267
≥200 USD $1.249881
≥500 USD $1.207868
≥1000 USD $1.186862
Inventory: 8429
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Isolation Voltage-Max 4000V
Load Current 1.5A
On-State Current-Max 1.5A
Forward Current-Max 0.05A
Voltage - Load 0V~240V
Relay Type Relay
Optoelectronic Device Type TRIGGER OUTPUT SSR
Throw Configuration SPST
Voltage - Input 1.2VDC
Circuit SPST-NO (1 Form A)
Number of Elements 1
Output Type AC, Zero Cross
Operating Temperature (Min) -25°C
Operating Temperature (Max) 85°C
Termination Style PC Pin
Reach Compliance Code unknown
Additional Feature WITH ZERO CROSSOVER CIRCUIT
Terminal Finish Tin/Lead (Sn/Pb)
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Series PR31HD
Published 2004
Packaging Tube
Physical
Number of Pins 11
Package / Case 16-DIP (0.300, 7.62mm), 10 Leads
Mounting Type Through Hole
Mount Through Hole
