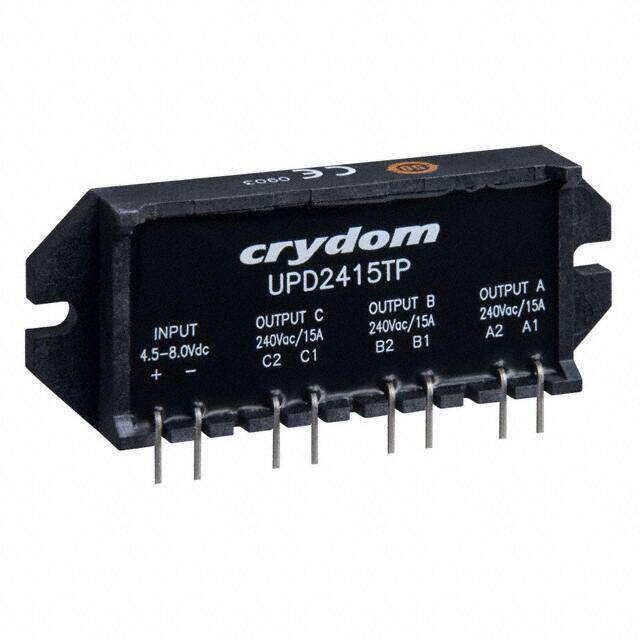

UPD2415TP
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP
Category Relays / Solid State Relays
Description
SSR RELAY 3PST-NO 15A 24-280V
PDF
/
Buying Options
Total Price: USD $100.61
Unit Price: USD $100.6104
≥1 USD $100.6104
≥10 USD $95.82408
≥100 USD $91.4672
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 78.3844mm
Height 28.575mm
Technical
Isolation Voltage 2.5kV
Load Current 15A
Input Current 10mA
RMS Current (Irms) 15A
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 150A
Max Output Voltage 280V
Max Voltage Rating (DC) 32V
Throw Configuration 3PST, DPST
Voltage - Input 4.5V~8VDC
Circuit 3PST-NO (3 Form A)
Output Type AC, Zero Cross
Approval Agency CE, UL
Voltage - Rated AC 240V
Termination Style PC Pin
Depth 12.7mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series UPD24TP
Packaging Bulk
Physical
Supplier Device Package 6-SIP
Number of Pins 8
Package / Case 6-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 6 Weeks
