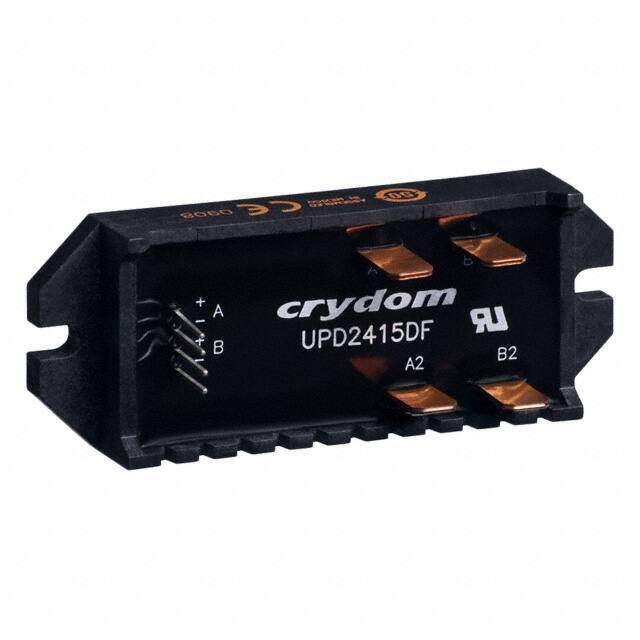

UPD2415DF
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Solid State Relays
Description
AC Zero Cross RoHS Compliant Active DPST Solid State Relay 80C 3V~15VDC 12.7mm 15A
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 78.23mm
Height 12.7mm
Technical
Isolation Voltage 2.5kV
Input Current 36mA
Voltage - Load 24V~280V
Relay Type Relay
Max Output Voltage 280V
Throw Configuration DPST
Voltage - Input 3V~15VDC
Circuit SPST-NO (1 Form A) x 2
Output Type AC, Zero Cross
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 15A
Depth 28.45mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series UPD24D
Published 2010
Packaging Bulk
Physical
Number of Pins 8
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
