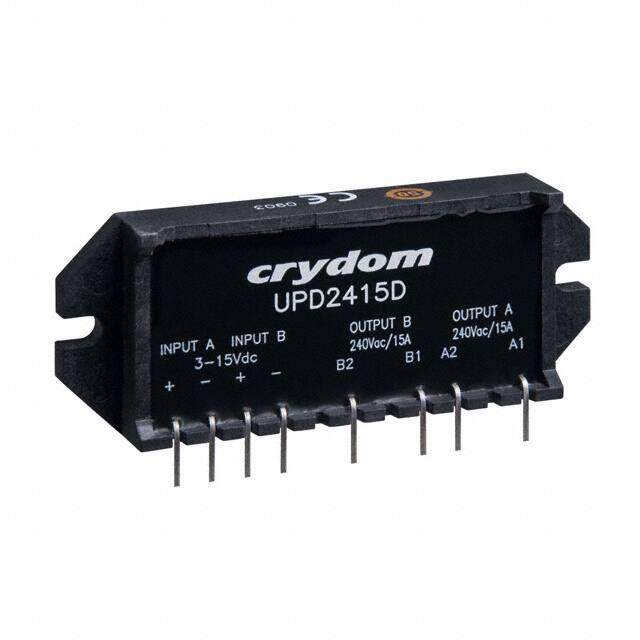

UPD2415D
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP
Category Relays / Solid State Relays
Description
CRYDOM UPD2415D Solid State Relay, UPD24D Series, SIP, 15 A, PCB, Through Hole, 24 Vrms, 280 Vrms
PDF
/
Inventory: 8384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 78.3844mm
Height 28.575mm
Technical
Isolation Voltage 2.5kV
Input Current 10mA
Voltage - Load 24V~280V
Relay Type Relay
Max Output Voltage 280V
Throw Configuration DPST
Voltage - Input 3V~15VDC
Circuit SPST-NO (1 Form A) x 2
Output Type AC, Zero Cross
Voltage - Rated AC 240V
Termination Style PC Pin
Current Rating 15A
Depth 12.7mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series UPD24D
Published 2009
Packaging Bulk
Physical
Number of Pins 8
Package / Case 6-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 6 Weeks
