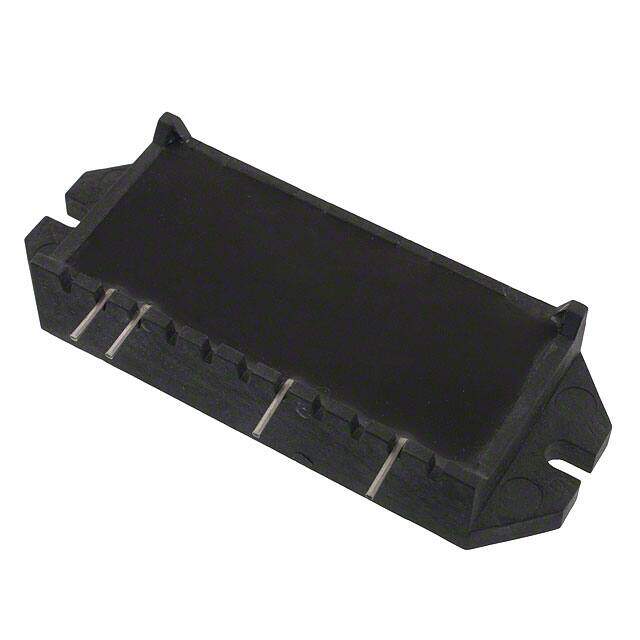

UPD2415-10
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP
Category Relays / Solid State Relays
Description
AC RoHS Compliant Active DPST SPST Solid State Relay 20mus 80C 3V~32VDC 28.575mm
PDF
/
Inventory: 6424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 77.88mm
Length 78.3844mm
Height 28.575mm
Technical
Isolation Voltage 2.5kV
Load Current 15A
Input Current 10mA
RMS Current (Irms) 15A
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 120A
Max Output Voltage 280V
Turn On Delay Time 20 μs
Max Voltage Rating (DC) 32V
Throw Configuration DPST, SPST
Voltage - Input 3V~32VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 280V
Output Type AC
Voltage - Rated AC 240V
Termination Style PC Pin
Depth 12.7mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series UPD24
Published 2010
Packaging Bulk
Physical
Supplier Device Package 6-SIP
Number of Pins 4
Package / Case 6-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 6 Weeks
