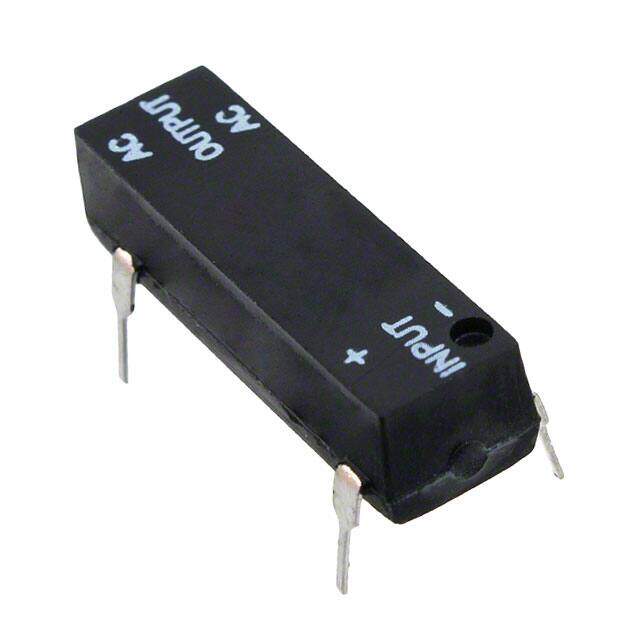

SDV2415R
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP (0.300, 7.62mm), 4 Leads
Category Relays / Solid State Relays
Description
CRYDOM SDV2415RSolid State Relay, SDV Series, DIP, SPST-NO, 1.5 A, PCB, Through Hole, 12 VAC, 280 VAC
PDF
/
Inventory: 7543
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Output Current 1.5A
Throw Configuration SPST
Max Output Voltage 280V
Max Surge Current 30A
Relay Type Relay
Voltage - Load 12V~280V
Input Current 15mA
Isolation Voltage 3.75kV
Max Supply Voltage (AC) 280V
Min Supply Voltage (AC) 12V
Voltage - Input 3.5V~10VDC
Max Voltage Rating (AC) 280V
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 60V
Output Type AC
Output Voltage 280V
Termination Style PC Pin
Depth 6.7mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series SDV
Packaging Tube
Dimensions
Height 4.8mm
Length 21.6mm
Width 6.7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 16
Package / Case 16-DIP (0.300, 7.62mm), 4 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 6 Weeks
