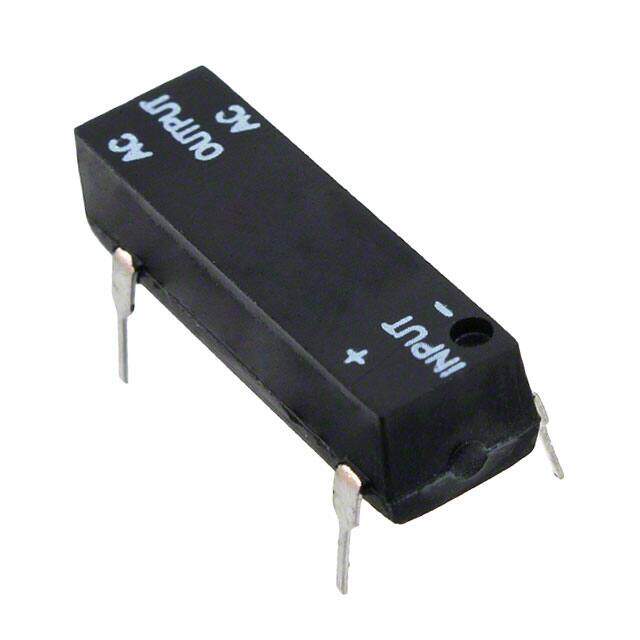

SDI2415R image
Favorite
SDI2415R image
Favorite

SDI2415R

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package 16-DIP (0.300, 7.62mm), 4 Leads
Category Relays / Solid State Relays
Description SSR RELAY SPST-NO 1.5A 12-280V
PDF
/
Buying Options
Total Price: USD $30.47
Unit Price: USD $30.4656
≥1 USD $30.4656
≥10 USD $29.0136
≥100 USD $27.6936
≥500 USD $26.875288
Inventory: 155
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 6.7mm
Length 21.6mm
Height 4.8mm

Technical

Min Supply Voltage (DC) 3V
Isolation Voltage 3.75kV
Max Supply Voltage (DC) 60V
Load Current 1.5A
Input Current 35mA
Max Input Current 35mA
Voltage - Load 12V~280V
Relay Type Relay
Max Surge Current 30A
Max Output Voltage 280V
Max Voltage Rating (DC) 60V
Throw Configuration SPST
Output Current 1.5A
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 60V
Output Type AC
Output Voltage 240V
Approval Agency CE, CSA, UL
Voltage - Rated AC 280V
Termination Style PC Pin
Current Rating 1.5A
Depth 6.7mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series SDI
Published 2008
Packaging Tube

Physical

Supplier Device Package 16-DIP
Number of Pins 16
Package / Case 16-DIP (0.300, 7.62mm), 4 Leads
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 6 Weeks
