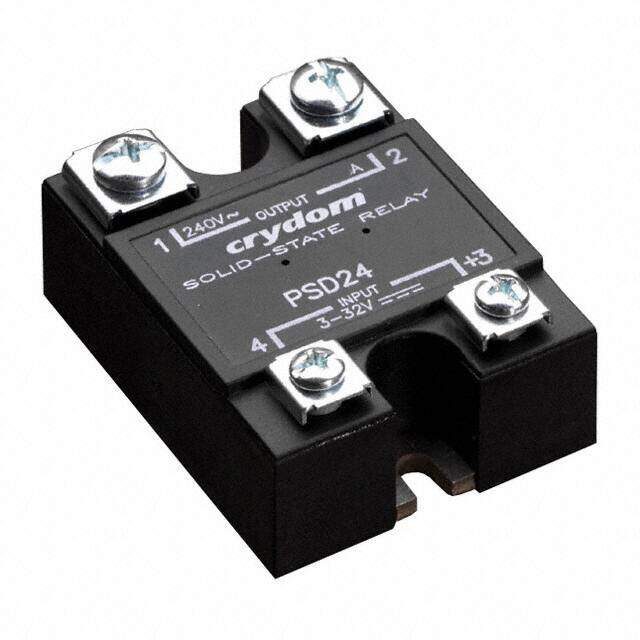

PSD2450
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 50A 90-280V
PDF
/
Buying Options
Total Price: USD $139.55
Unit Price: USD $139.5504
≥1 USD $139.5504
≥10 USD $132.90728
≥100 USD $126.869776
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 45.7mm
Length 45.7mm
Height 23mm
Technical
Isolation Voltage 4kV
Load Current 50A
Input Current 2mA
Voltage - Load 90V~280V
Relay Type Relay
Max Surge Current 625A
Max Output Voltage 280V
Throw Configuration SPST
Output Current 50A
Voltage - Input 3V~32VDC
Insulation Resistance 1GOhm
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Depth 58.4mm
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Not For New Designs
Series PS24
Packaging Bulk
Physical
Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
