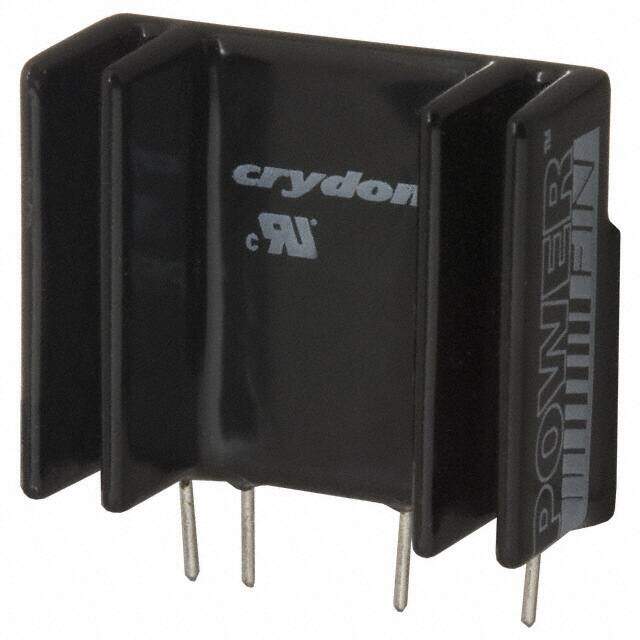

PFE480D25R image
Favorite
PFE480D25R image
Favorite

PFE480D25R

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package 4-SIP
Category Relays / Solid State Relays
Description CRYDOM PFE480D25RSolid State Relay, PowerFin / PF Series, SIP, 25 A, PCB, Through Hole, 3 VDC, 60 VDC
PDF
/
Buying Options
Total Price: USD $35
Unit Price: USD $35.001525
≥1 USD $35.001525
≥10 USD $33.020303
≥100 USD $31.151231
≥500 USD $29.387954
≥1000 USD $27.724486
Inventory: 1514
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Length 43.1mm
Height 34.3mm

Technical

Min Supply Voltage (DC) 3V
Max Supply Voltage (DC) 60V
Voltage - Load 48V~660V
Relay Type Relay
Max Voltage Rating (DC) 60V
Throw Configuration SPST
Voltage - Input 15V~32VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 660V
Output Type AC
Voltage - Rated AC 660V
Termination Style PC Pin
Current Rating 25A
Depth 22.8mm
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PF, PowerFin?
Published 2008
Packaging Bulk

Physical

Number of Pins 4
Package / Case 4-SIP
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 5 Weeks
