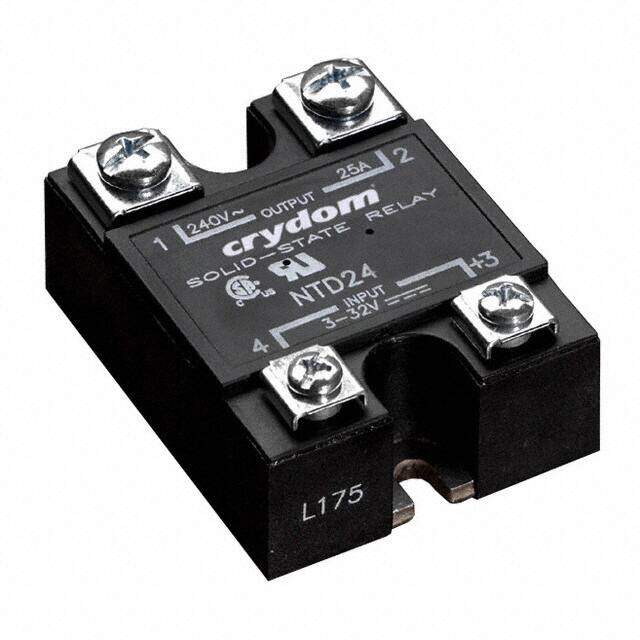

NTD2410
RoHS
/
Package Hockey Puck
Category Relays / Solid State Relays
Description
RELAY SSR AC OUT 240VAC 10A PNL
PDF
/
Inventory: 1770
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 22.9mm
Length 45.7mm
Height 58.4mm
Technical
Load Current 10A
Input Current 10mA
Voltage - Load 24V~280V
Relay Type Relay
Throw Configuration SPST
Output Current 10A
Voltage - Input 3V~32VDC
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series NTD
Published 2003
Packaging Bulk
Physical
Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 4 Weeks
