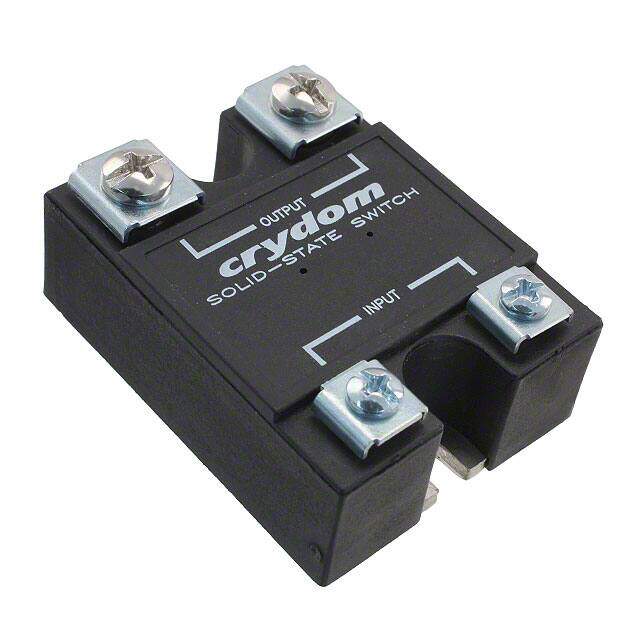

LVD75E40H
RoHS
RoHS compliant
RoHS compliantPackage Hockey Puck
Category Relays / Solid State Relays
Description
DC RoHS Compliant Active SPST Solid State Relay 80C 24V~25VDC 99.999994g 40A
PDF
/
Buying Options
Total Price: USD $186.67
Unit Price: USD $186.673374
≥1 USD $186.673374
≥200 USD $72.24101
≥500 USD $69.701861
≥1000 USD $68.446729
Inventory: 1438
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Isolation Voltage 2.5kV
Load Current 40A
Max Input Current 12mA
On-State Resistance (Max) 15mOhms
Voltage - Load 3V~75V
Relay Type Relay
Max Output Voltage 75V
Throw Configuration SPST
Voltage - Input 24V~25VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 75V
Max Output Current 40A
Output Type DC
Termination Style Screw Terminal
Current Rating 40A
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Resistance 15mOhm
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LVD
Published 2010
Packaging Bulk
Physical
Weight 99.999994g
Number of Pins 4
Package / Case Hockey Puck
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 6 Weeks
