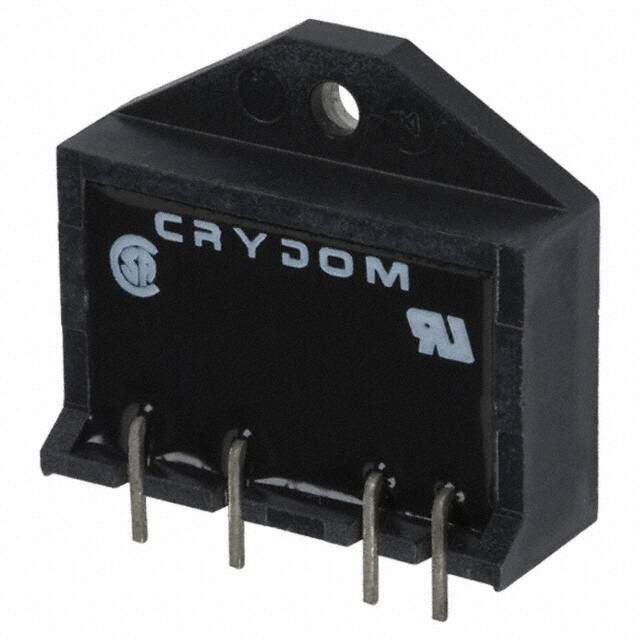

LSE240D12R image
Favorite
LSE240D12R image
Favorite

LSE240D12R

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package 4-SIP
Category Relays / Solid State Relays
Description SSR, PCB MOUNT, 280VAC, 28VDC, 12A
PDF
/
Buying Options
Total Price: USD $32.19
Unit Price: USD $32.1904
≥1 USD $32.1904
Inventory: 63
Minimum: 1
-
+

Technical Details

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant

Dimensions

Width 13.1mm
Length 35.3mm
Height 31mm

Technical

Isolation Voltage 2.5kV
Load Current 12A
Input Current 15mA
Voltage - Load 24V~280V
Relay Type Relay
Max Output Voltage 280V
Throw Configuration SPST
Voltage - Input 20V~28VDC
Circuit SPST-NO (1 Form A)
Output Type AC
Termination Style PC Pin
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LS
Packaging Bulk

Physical

Supplier Device Package 4-SIP
Number of Pins 4
Package / Case 4-SIP
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 5 Weeks

Alternative Model

2-1393819-5

2-1393819-5

TE Connectivity Potter & Brumfield Relays
