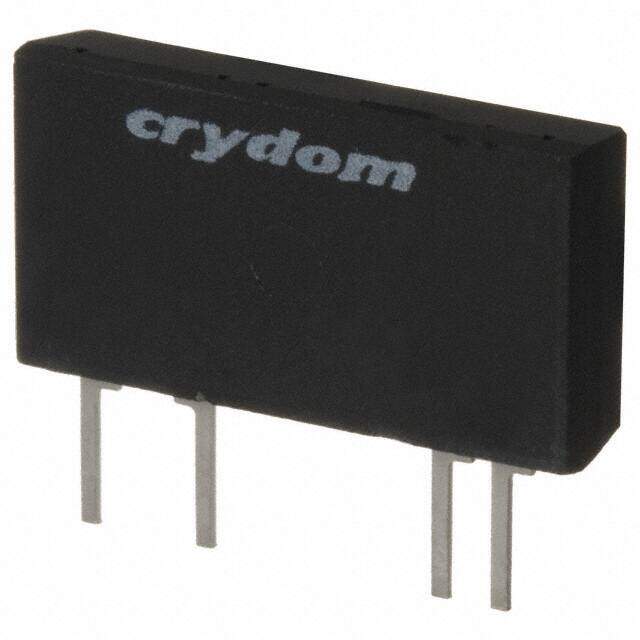

LC242
RoHS
/
Package 4-SIP
Category Relays / Solid State Relays
Description
CRYDOM LC242Solid State Relay, LC Series, Mini SIP, SPST-NO, 2 A, PCB, Through Hole, 12 Vrms, 280 Vrms
PDF
/
Inventory: 4236
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 24.1mm
Height 12.7mm
Technical
Breakdown Voltage-Min 26.7V
Isolation Voltage 2.5kV
Input Current 15mA
Non-rep Peak Rev Power Dis-Max 500W
Voltage - Load 12V~280V
Relay Type Relay
Max Output Voltage 280V
Case Connection ISOLATED
Throw Configuration SPST
Output Current 2A
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Voltage - Input 4V~10VDC
Polarity UNIDIRECTIONAL
Circuit SPST-NO (1 Form A)
Number of Elements 2
Max Output Current 2A
Output Type AC, Zero Cross
Output Voltage 280V
Voltage - Rated AC 240V
JESD-30 Code R-PDSO-G8
Termination Style PC Pin
Pin Count 8
Current Rating 2A
Depth 5.1mm
Terminal Form GULL WING
Technology AVALANCHE
Min Operating Temperature -40°C
Max Operating Temperature 80°C
ECCN Code EAR99
Termination PC Pin
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series LC
Published 2008
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case 4-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
