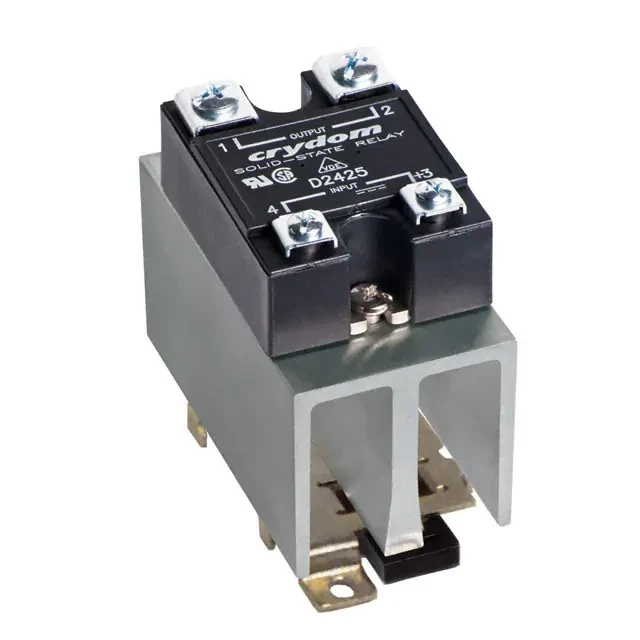

HS351DR-D2425
RoHS
/
Package Hockey Puck with Heat Sink
Category Relays / Solid State Relays
Description
Lead Free AC Zero Cross Passive RoHS Compliant Solid State Relay 3V~32VDC 45mm 20A
PDF
/
Inventory: 5384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Hockey Puck with Heat Sink
Number of Pins 4
Technical
Packaging Bulk
Published 2009
Series HS
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Passive
Color Black
Depth 45mm
Current Rating 20A
Termination Style Screw Terminal
Output Voltage 280V
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Voltage - Input 3V~32VDC
Load Current 20A
RMS Current (Irms) 20A
Voltage - Load 24V~280V
Relay Type Relay
Max Surge Current 250A
Max Voltage Rating (DC) 32V
Throw Configuration SPST
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 45mm
Length 97mm
Height 45mm
